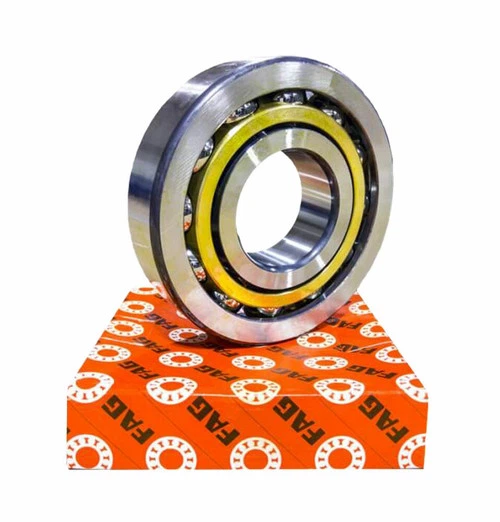

FAG/SDVV Available 70860-MP Angular Contact Ball Bearing

70860-MP With Size 300x380x25 mm Single Row Angular Contact Ball Bearings Are Available In Stock



Angular contact ball bearings with standardized main dimensions correspond to DIN 628-1.
The dimensional and geometrical tolerances of the standardised bearings correspond to tolerance class PN to DIN 620-2.P5 precisioin could also be supplied.

Single row 70..-MP series with MP-Solid brass cage,ball guided;This brass cage has good strength and heat resistance, which can keep the bearing structure stable at high speed and adapt to the heat generated by the bearing at high speed.Contact angle 30°.This open type can be used at operating temperatures from –30 °C to +200 °C(Mainly rings dimensional stabilized up to 200°). Normal (PN) tolerance class; Single-row bearings can withstand radial loads and unidirectional axial loads,Can be lubricated with grease or oil.
Bore diameter-300 mm; Outside diameter-380 mm;Width-25 mm; Mass-7.11kg;Cr=104 kN;C0r=176 kN;Limiting speed=2800 1/min;
