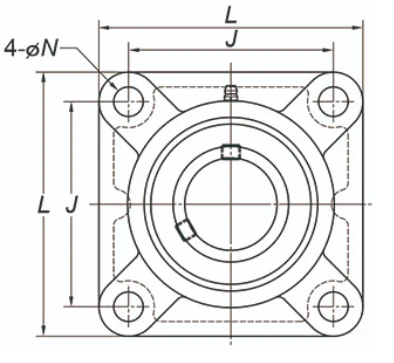

UCFX20 Flange-Mount Ball Bearing Unit
UCFX20 Flange-Mount Ball Bearing Unit is consist of UCX20 insert bearing and FCX20 Housing.
Construction:4-Bolt Flange;without :End Cap;Construction：Shaft Size :3-15/16".
| Designation | UCFX20 | |
| Category | ||
| Flange-Mount Ball Bearing Unit | ||
| Dimensions | ||
| d | 100 mm |
|
| L | 268 mm |
|
| A | 97 mm |
|
| J | 211 mm | |
| W (Weight) | 19.4kg | |
| Technical Data | ||
| Cr (kN) Basic dynamic load rating | 133 kN | |
| C0r (kN) Basic static load rating | 105 kN | |
| Fatigue load limit : | 3.91 kN | |
| Housing Material | Cast Iron | |
| Locking Device | Set Screw | |
| Seal Type | Contact | |
| Seal Material | Nitrile Rubber | |
| Features and Benefits | 1. Exceptional high load carrying capacity 2. Low friction and long service life 3. Enhanced operational reliability 4. Easy mounting and dismounting 5. High speed capability |
|
