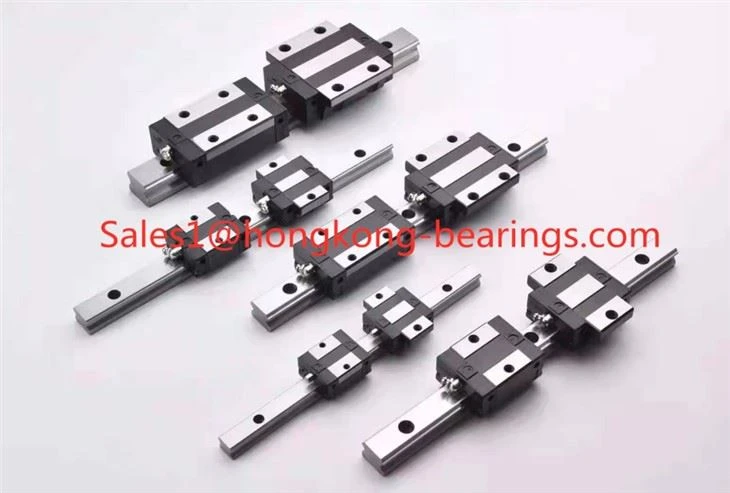

SR 20MSW Linear Guide slider 28*42*60.2 mm specification
| Designation | SR20MSW |
| Category | LM Guide Model SRG |
| Height M(mm) | 28 |
| Width W(mm) | 42 |
| Length L(mm) | 60.2 |
| LM block(kg) | 0.2 |
| permissible load | 750 |
| Static permissible moment kN•m(one block) | 3.76 |
| Static permissible moment kN•m(two blocks) | 19.9 |
| Radial clearance | Normal |
| Contamination protection | YES |
About SR 20MSW Linear Motion Guide 28*42*60.2
| Category | LM Guide Oil-Free for Special Environments Model SR-MS |
| Overview | 1. stainless steel components 2. Degreased and cleaned special solvent is used to de-grease this model. 3. Use of highly reliable dry lubricant S-com pound film for stainless steel balls achieves grease-free lubrication. 4. Suitable for applications where the vacuum level reaches 10‒6Pa and chemical contamination (gaseous contamination such as organic matter and moisture) is not allowed. * Can be used at temperature up to 150℃ (instantaneously 200℃). |
| Features and Benefits | 1. low frictional properties in atmospheric to vacuum environments 2. lower level of dust generation 3. longer service life than conventional dry lubrication |
| Application | 1. main industry: semiconductor FPD, manufacturing machine, 2. Exposure machine, organic EL manufacturing machine, ion injection machine |
Extended SR-20MSW Linear Bearing Block LM Guide Rail
| Model No. | Outer dimensions | LM rail dimensions | Mass | |||||||||
| Height (M) | Width (W) | Length(L) | H3 | Width W1 ±0.05 | W2 | Height M1 | Pitch F | d1*d2*h | Length Max | LM Block kg | LM Rail kg/m | |
| SR15MSV SR15MSW | 24 | 34 | 36.6 53.2 | 4.5 | 15 | 9.5 | 12.5 | 60 | 3.5*6*4.5 | 400 | 0.12 0.2 | 1.2 |
| SR20MSV SR20MSW | 28 | 42 | 41.3 60.2 | 6 | 20 | 11 | 15.5 | 60 | 6*9.5*8.5 | 400 | 0.2 0.3 | 2.1 |
