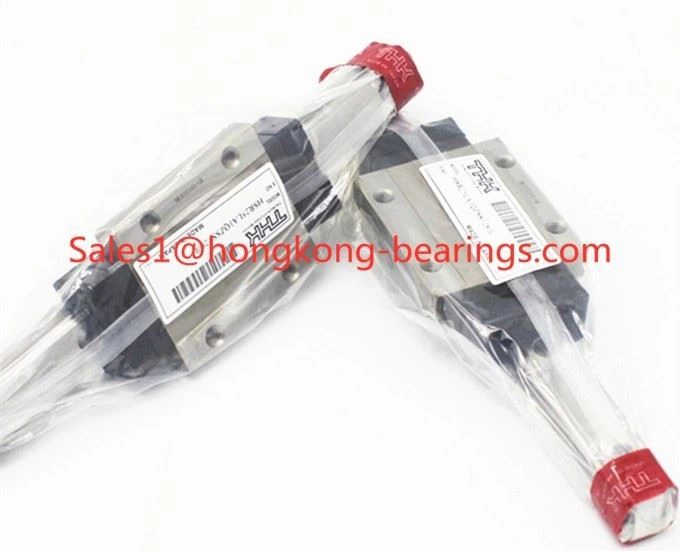

SRG 20LV Linear Guide slider 30*44*106.2 mm specification
| Designation | SRG 20LV |
| Category | LM Guide Model SRG |
| Height M(mm) | 30 |
| Width W(mm) | 44 |
| Length L(mm) | 106.2 |
| LM block(kg) | 0.38 |
| Cr (kN) Basic dynamic load rating | 26.7 |
| C0r (kN) Basic static load rating | 63.8 |
| Static permissible moment kN•m(one block) | 0.88 |
| Static permissible moment kN•m(two blocks) | 4.49 |
| Grease nipple | PB107 |
| Radial clearance | Normal |
| Lubricator | No |
| Contamination protection | No |
About SRG20LV Linear Motion Guide 30*44*106.2
| Category | LM Guide Ultra-high Rigidity Type Model SRG |
| Overview | SRG is an ultra-high rigidity Roller Guide that uses roller cages to allow low-friction, smooth linear motion. |
| Features and Benefits | 1. with highly rigid rollers and long overall roller length, the SRG model can achieve high rigidity. 2. 4-way rqual load 3. Smooth Motion through Skewing Prevention |
| Application | 1. Super precision machine tool 2. Robotic arm and associated products 3. Medical equipments 4. Automatic assemly lines 5. Long-term Maintenance-free Operation 6. Global Standard Size |
Extended SRG-20LV Linear Bearing Block LM Guide Rail
| Model No. | Outer dimensions | LM rail dimensions | Mass | |||||||||
| Height (H) | Width (W) | Length(L) | H3 | Width W1 ±0.05 | W2 | Height M1 | Pitch F | d1*d2*h | Length Max | LM Block kg | LM Rail kg/m | |
| SRG 15V | 24 | 34 | 69.2 | 4 | 15 | 9.5 | 15.5 | 30 | 4.5*7.5*5.3 | 3000 | 0.15 | 22.5 22.5 |
| SRG 20V SRG 20LV | 30 | 44 | 86.2 106.2 | 4.6 | 20 | 12 | 20 | 30 | 6*9.5*8.5 | 3000 | 0.28 0.38 | 22.5 |
