NU20/530-E-M1 With Size 530x780x145 mm Single-Row Cylindrical Roller Bearings With Cage In Stock
Overview
Single row non-locating cylindrical roller bearings,With brass cage, In series NU, the outer ring has two ribs, while the inner ring has no ribs.E-Increased capacity design;M1-Two piece brass cage roller guided;Running accuracy in P6. Operating temperature min.Tmin:-30 °C;Tmax. 150 °C.CN-Normal internal clearance.
Bore diameter-530 mm;Outside diameter-780 mm;Width-145 mm; Mass-250 kg;Cr=3550 kN;C0r=7200 kN;Limiting speed=1300 1/min;Reference speed=450 1/min.
Extended same type with differrent suffix NU 20/530 ECMA;NU20/530-E-M1A;NU20/530 are also ready In-stock for your more machine applications needs.
Specifications

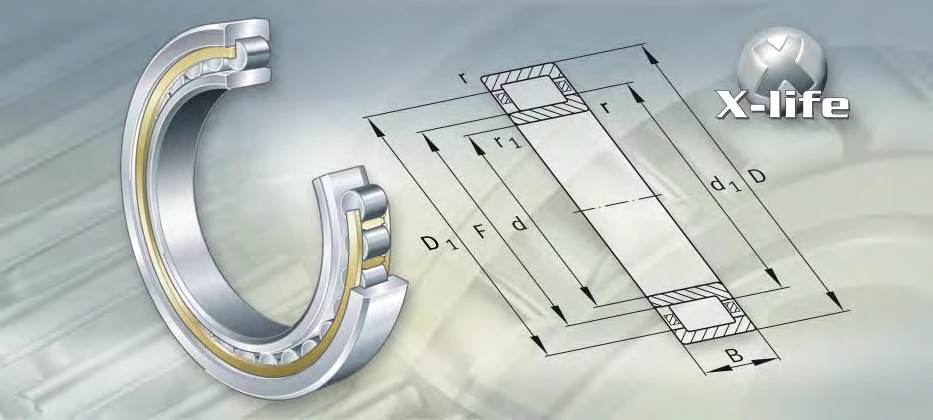

| Dimensions &Technical Datasheets | |
| Part NO. | NU20/530-E-M1 - Single-Row Cylindrical Roller Bearings |
| Brand | FAG brand made in GERMANY/SDVV brand made in China |
| Main Dimensions | 530x780x145 mm |
| d | 530 mm |
| D | 780 mm |
| B | 145 mm |
| rmin | 6 mm |
| Limiting speed | 1300 1/min |
| Reference speed | 450 1/min |
| da | 553 mm |
| Da | 757 mm |
| ra max. | 5 mm |
| Cr | 3550 kN |
| C0r | 7200 kN |
| M | 250 kg |
Our Certificates We Could Supply
Bearing Applications
Widely used in printing and dyeing machinery and equipment, calenders, evaporators, and other fields.
