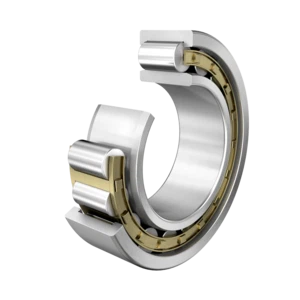

NU336-E-MPA With Size 180x380x75 mm Single-Row Cylindrical Roller Bearings With Cage
Overview
Single row non-locating cylindrical roller bearings, With cage, In series NU, the outer ring has two ribs, while the inner ring has no ribs.MPA-Solid brass cage, outer ring guided.
Bore diameter-180 mm; Outside diameter-380 mm;Width-75 mm; Mass-43.9 kg;Cr=1040 kN;C0r=1320 kN;Limiting speed=2800 1/min;Reference speed=1500 1/min.
Similar bearing type N336-E-MP1B; NU336-E-M1; NU336-E-M1A; NU336-E-MP1A bearing is available in stock for fast delivery too.
Specifications
| Dimensions &Technical Datasheets | |
| Part NO. | NU336-E-MPA - Cylindrical Roller Bearings |
| Brand | FAG brand made in GERMANY/SDVV brand made in China |
| Main Dimensions | 180x380x75 mm |
| d | 180 mm |
| D | 380 mm |
| B | 75 mm |
| rmin | 4 mm |
| Limiting speed | 2800 1/min |
| Reference speed | 1500 1/min |
| da | 197 mm |
| Da | 363 mm |
| ra max. | 3 mm |
| Cr | 1040 kN |
| C0r | 1320 kN |
| M | 43.9 kg |
Recommended bearing models
| Designation | X-life | Design | Mass m ≈kg |
Dimensions | ||||||||
| d | D | B | r min. |
r1 min. |
s1) | E | F | D₁ ≈ |
||||
| N236-E-M1 | XL | 1 | 189 | 180 | 320 | 52 | 4 | 4 | 47 | 289 | 一 | 一 |
| NU236-E-M1 | XL | 3 | 189 | 180 | 320 | 52 | 4 | 4 | 47 | 289 | 217 | 2,786 |
| NU236-E-M1A | XL | 3 | 189 | 180 | 320 | 52 | 4 | 4 | 47 | 289 | 217 | 2,786 |
| NU236-E-MP1A | XL | 3 | 189 | 180 | 320 | 52 | 4 | 4 | 47 | 289 | 217 | 2,786 |
| NU1236-M1 | 一 | 3 | 222 | 180 | 320 | 62 | 4 | 4 | 47 | 293 | 213 | 2,798 |
| NU2236-E-M1 | XL | 3 | 307 | 180 | 320 | 86 | 4 | 4 | 72 | 291 | 215 | 280 |
| NU2236-E-M1A | XL | 3 | 313 | 180 | 320 | 86 | 4 | 4 | 72 | 291 | 215 | 280 |
| N336-E-MP1B | 一 | 1 | 429 | 180 | 380 | 75 | 4 | 4 | 61 | 335 | 一 | 一 |
| NU336-E-M1 | 一 | 3 | 439 | 180 | 380 | 75 | 4 | 4 | 61 | 335 | 231 | 3,198 |
| NU336-E-M1A | 一 | 3 | 439 | 180 | 380 | 75 | 4 | 4 | 61 | 335 | 231 | 3,198 |
| NU336-E-MP1A | 一 | 3 | 439 | 180 | 380 | 75 | 4 | 4 | 61 | 335 | 231 | 3,198 |
| NU336-E-MPA | 一 | 3 | 439 | 180 | 380 | 75 | 4 | 4 | 61 | 335 | 231 | 3,198 |
| N2336-EX-M1 | 一 | 1 | 713 | 180 | 380 | 126 | 4 | 4 | 105 | 339 | 一 | 一 |
| N2336-EX-MP1B | 一 | 1 | 697 | 180 | 380 | 126 | 4 | 4 | 105 | 339 | 一 | 一 |
| NU2336-EX-M1 | 一 | 3 | 718 | 180 | 380 | 126 | 4 | 4 | 105 | 339 | 227 | 3,208 |
| NU436-M1 | 一 | 3 | 809 | 180 | 440 | 95 | 6 | 6 | 89 | 370 | 250 | 3,469 |
| NU3138-M1 | 一 | 3 | 344 | 190 | 320 | 104 | 3 | 3 | 92 | 294 | 222 | 2,821 |
| N238-E-M1 | 一 | 1 | 228 | 190 | 340 | 55 | 4 | 4 | 47 | 306 | 一 | 一 |
| N238-E-M1B | 一 | 1 | 23 | 190 | 340 | 55 | 4 | 4 | 47 | 306 | 一 | 一 |
| NU238-E-M1 | 一 | 3 | 228 | 190 | 340 | 55 | 4 | 4 | 47 | 306 | 230 | 295 |
| NU238-E-M1-C3 | 一 | 3 | 228 | 190 | 340 | 55 | 4 | 4 | 47 | 306 | 230 | 295 |
| NU238-E-M1A | 一 | 3 | 228 | 190 | 340 | 55 | 4 | 4 | 47 | 306 | 230 | 295 |
| NU238-E-MP1A | 一 | 3 | 222 | 190 | 340 | 55 | 4 | 4 | 47 | 306 | 230 | 295 |
| NU238-E-MPA | 一 | 3 | 222 | 190 | 340 | 55 | 4 | 4 | 47 | 306 | 230 | 295 |
| NU1238-M1 | 一 | 3 | 266 | 190 | 340 | 65 | 4 | 4 | 48 | 310 | 226 | 2,962 |
| NU2238-E-M1 | 一 | 3 | 371 | 190 | 340 | 92 | 4 | 4 | 8 | 308 | 228 | 2,964 |
| NU2238-E-M1A | 一 | 3 | 379 | 190 | 340 | 92 | 4 | 4 | 8 | 308 | 228 | 2,964 |
| Z-549128.ZL | 一 | 4 | 455 | 190 | 340 | 114 | 3 | 8 | 76 | 3,131 | 2,291 | 2,992 |
| N338-E-M1 | 一 | 1 | 505 | 190 | 400 | 78 | 5 | 5 | 63 | 353 | 一 | 一 |
| NU338-E-M1 | 一 | 3 | 506 | 190 | 400 | 78 | 5 | 5 | 63 | 353 | 245 | 336 |
| NU338-E-M1A | 一 | 3 | 506 | 190 | 400 | 78 | 5 | 5 | 63 | 353 | 245 | 336 |
