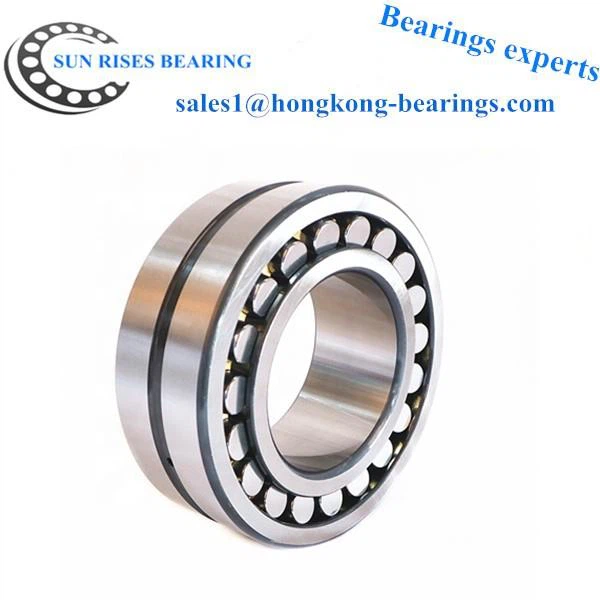

22316EK Bearing drawing and technical data:
| Spherical roller bearings: 22316EK Bearing |
| Spherical roller bearings Bearing number : 22316EK Bearing |
| Size (mm) : 80x170x58 |
| Bore Diameter (mm) : 80 |
| Outer Diameter (mm) : 170 |
| Width (mm) : 58 |
| M - 6.45 kg / Weight |
Spherical roller bearings: 22316EK Bearing models catalogue shows:
Spherical roller bearings: 22316EK Bearing applications:
gearboxes
wind turbines
continuous casting machines
material handling
pumps
mechanical fans and blowers
mining and construction equipment
pulp and paper processing equipment
marine propulsion and offshore drilling
off-road vehicles.
Spherical roller bearings 22316EK reference models catalogue：
| Designations | Principal dimensions | Basic load ratings | Fatigue load limit | Speed ratings | |||||
| Bearing | Sleeve | dynamic | static | Reference speed | Limiting speed | ||||
| d / d1 | D | B | C | C0 | Pu | ||||
| mm | kN | kN | r/min | ||||||
| 21311 EK | H 311 | 50 | 120 | 29 | 159 | 166 | 18.6 | 5600 | 7500 |
| 22211 EK | H 311 | 50 | 100 | 25 | 129 | 127 | 13.7 | 6300 | 8500 |
| 21312 EK | AHX 312 | 55 | 130 | 31 | 217 | 240 | 26.5 | 4800 | 6300 |
| 22212 EK | AHX 312 | 55 | 110 | 28 | 159 | 166 | 18.6 | 5600 | 7500 |
| 21311 E | 55 | 120 | 29 | 159 | 166 | 18.6 | 5600 | 7500 | |
| BS2-2211-2RS/VT143 | 55 | 100 | 31 | 129 | 127 | 13.7 | 2900 | ||
| 21312 EK | H 312 | 55 | 130 | 31 | 217 | 240 | 26.5 | 4800 | 6300 |
| 21311 EK | 55 | 120 | 29 | 159 | 166 | 18.6 | 5600 | 7500 | |
| BS2-2311-2RS/VT143 | 55 | 120 | 49 | 280 | 280 | 30 | 2800 | ||
| 22312 EK | H 2312 | 55 | 130 | 46 | 325 | 335 | 36 | 4000 | 5300 |
| 22311 EK/VA405 | 55 | 120 | 43 | 280 | 280 | 30 | 4300 | 5600 | |
| 22312 EK | AHX 2312 | 55 | 130 | 46 | 325 | 335 | 36 | 4000 | 5300 |
| 22311 EK | 55 | 120 | 43 | 280 | 280 | 30 | 4300 | 5600 | |
| BS2-2211-2RSK/VT143 | 55 | 100 | 31 | 129 | 127 | 13.7 | 2900 | ||
| 22211 EK | 55 | 100 | 25 | 129 | 127 | 13.7 | 6300 | 8500 | |
| 22212 EK | H 312 | 55 | 110 | 28 | 159 | 166 | 18.6 | 5600 | 7500 |
| BS2-2212-2RSK/VT143 | H 312 E | 55 | 110 | 34 | 159 | 166 | 18.6 | 2700 | |
| 22211 E | 55 | 100 | 25 | 129 | 127 | 13.7 | 6300 | 8500 | |
| 22311 E/VA405 | 55 | 120 | 43 | 280 | 280 | 30 | 4300 | 5600 | |
| 22311 E | 55 | 120 | 43 | 280 | 280 | 30 | 4300 | 5600 | |
| 22312 EK | 60 | 130 | 46 | 325 | 335 | 36 | 4000 | 5300 | |
| 22313 EK | H 2313 | 60 | 140 | 48 | 357 | 360 | 38 | 3800 | 5000 |
| BS2-2312-2RS/VT143 | 60 | 130 | 53 | 325 | 335 | 36 | 2500 | ||
| BS2-2214-2RSK/VT143 | H 314 E | 60 | 125 | 38 | 213 | 228 | 25.5 | 2300 | |
| 21313 EK | H 313 | 60 | 140 | 33 | 243 | 270 | 29 | 4300 | 6000 |
| 22213 EK | H 313 | 60 | 120 | 31 | 198 | 216 | 24 | 5000 | 7000 |
| BS2-2212-2RS/VT143 | 60 | 110 | 34 | 159 | 166 | 18.6 | 2700 | ||
| BS2-2212-2RSK/VT143 | 60 | 110 | 34 | 159 | 166 | 18.6 | 2700 | ||
| 22314 EK | H 2314 | 60 | 150 | 51 | 413 | 430 | 45 | 3400 | 4500 |
| 22312 E | 60 | 130 | 46 | 325 | 335 | 36 | 4000 | 5300 | |
| BS2-2213-2RSK/VT143 | H 2313 E | 60 | 120 | 38 | 198 | 216 | 24 | 2400 | |
| 22213 EK | AH 313 G | 60 | 120 | 31 | 198 | 216 | 24 | 5000 | 7000 |
| 22212 E | 60 | 110 | 28 | 159 | 166 | 18.6 | 5600 | 7500 | |
| 22312 E/VA405 | 60 | 130 | 46 | 325 | 335 | 36 | 4000 | 5300 | |
| 22312 EK/VA405 | 60 | 130 | 46 | 325 | 335 | 36 | 4000 | 5300 | |
| 22313 EK | AH 2313 G | 60 | 140 | 48 | 357 | 360 | 38 | 3800 | 5000 |
| 22214 EK | H 314 | 60 | 125 | 31 | 213 | 228 | 25.5 | 5000 | 6700 |
| 21312 EK | 60 | 130 | 31 | 217 | 240 | 26.5 | 4800 | 6300 | |
| 21312 E | 60 | 130 | 31 | 217 | 240 | 26.5 | 4800 | 6300 | |
| 21313 EK | AH 313 G | 60 | 140 | 33 | 243 | 270 | 29 | 4300 | 6000 |
| 22212 EK | 60 | 110 | 28 | 159 | 166 | 18.6 | 5600 | 7500 | |
| 21314 EK | H 314 | 60 | 150 | 35 | 291 | 325 | 34.5 | 4000 | 5600 |
| 22313 E/VA405 | 65 | 140 | 48 | 357 | 360 | 38 | 3800 | 5000 | |
| 21315 EK | H 315 | 65 | 160 | 37 | 291 | 325 | 34.5 | 4000 | 5600 |
| BS2-2213-2RSK/VT143 | 65 | 120 | 38 | 198 | 216 | 24 | 2400 | ||
