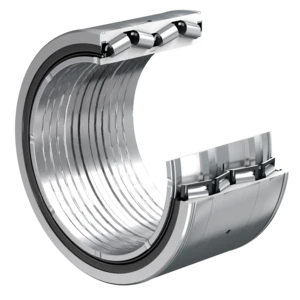

F-802082.TR4 With Size 244.475x327.025x193.675 mm Four Row Tapered Roller Bearing
Overview
Design 5
■ Outer ring with one rigid rib, inner ring with one rigid rib,
pin cage
■ Application:
– in converter drives, bucket wheel excavators.
Suffix meaning: TR4-Four-row tapered roller bearing
Open type four-row tapered roller bearings; with sheet steel cages; TQO arrangement; Tolerance class Normal (ISO 492:2023).
Bore diameter-244.475 mm; Outside diameter-327.025 mm;Width-193.675 mm; Mass-42.5 kg;Cr=1470 kN;C0r=2700 kN;Cur=255 kN.
Specifications
| Dimensions &Technical Datasheets | |
| Part NO. | F-802082.TR4 - Four Row Tapered Roller Bearing |
| Brand | FAG made in GERMANY and SDVV/ZBM brand made in China |
| Main Dimensions | 244.475x327.025x193.675 mm |
| d | 244.475 mm |
| D | 327.025 mm |
| T | 193.675 mm |
| B | 193.675 mm |
| e | 0.37 mm |
| r1, r2 min. | 1.5 mm |
| r3, r4 min | 3.3 mm |
| Cr | 1470 kN |
| C0r | 2700 kN |
| Cur | 255 kN |
| M | 42.5 kg |
Below Same Type Is Also Available
| Designation | Design | Mass m ≈kg |
Dimensions | |||
| d | D | T | B | |||
| F-802160.TR4 | 5 | 79 | 216,103 | 3,302 | 269,875 | 263,525 |
| Z-576479.TR4 | 5 | 164 | 2,286 | 40,005 | 296,875 | 296,875 |
| Z-573745.TR4 | 5 | 52 | 23,495 | 327,025 | 19,685 | 19,685 |
| F-802190.TR4 | 5 | 69 | 241,478 | 349,148 | 2,286 | 2,286 |
| F-802082.TR4 | 5 | 425 | 244,475 | 327,025 | 193,675 | 193,675 |
| F-802192.TR4-H122AE | 5 | 123 | 244,475 | 381 | 3,048 | 3,048 |
| F-802066.TR4 | 5 | 83 | 254 | 358,775 | 269,875 | 269,875 |
| Z-578395.TR4 | 6 | 180 | 26,035 | 422,275 | 3,175 | 314,325 |
| F-802011.TR4 | 5 | 604 | 2,667 | 3,556 | 2,286 | 230,188 |
| F-802011.TR4-H122AE | 51) | 606 | 2,667 | 3,556 | 2,286 | 230,188 |
| Z-573688.TR4 | 5 | 115 | 2,667 | 3,937 | 269,878 | 269,878 |
| Z-580961.TR4 | 5 | 84 | 27,305 | 381 | 244,475 | 244,475 |
| F-802193.TR4-H122AE | 51) | 100 | 276,225 | 3,937 | 269,878 | 269,878 |
| Z-575940.TR4 | 5 | 106 | 2,794 | 3,937 | 269,878 | 269,878 |
| F-802101.TR4-A250-300 | 5 | 74 | 28,575 | 380,898 | 244,475 | 244,475 |
| F-802096.TR4 | 5 | 117 | 288,925 | 4,064 | 29,845 | 29,845 |
| F-802071.TR4-H122AG | 5 | 128 | 304,648 | 438,048 | 2,794 | 28,099 |
| F-802079.TR4 | 5 | 104 | 3,048 | 4,191 | 269,875 | 269,875 |
| Z-577249.TR4 | 5 | 106 | 304,902 | 412,648 | 2,667 | 2,667 |
| F-802025.TR4 | 5 | 986 | 304,902 | 412,648 | 2,667 | 2,667 |
| F-802025.TR4-H122AF | 5 | 981 | 304,902 | 412,648 | 2,667 | 2,667 |
| Z-567640.TR4 | 7 | 113 | 304,902 | 412,648 | 2,667 | 33,655 |
| F-802072.TR4-H122AG | 5 | 128 | 305,003 | 438,048 | 2,794 | 28,099 |
| F-802081.TR4-H122AE | 51) | 102 | 3,175 | 422,275 | 269,875 | 269,875 |
| Z-581035.TR4 | 5 | 168 | 3,175 | 447,675 | 327,025 | 327,025 |
| F-802068.TR4 | 5 | 97 | 330,302 | 438,023 | 254 | 24,765 |
| Z-576210.TR4 | 5 | 193 | 333,375 | 4,699 | 3,429 | 3,429 |
| F-802108.TR4-H122AG | 5 | 109 | 341,312 | 457,098 | 254 | 254 |
| Z-578862.TR4 F-802003.TR4-H122AF |
5 | 119 | 343,052 | 457,098 | 254 | 254 |
| 5 | 108 | 343,052 | 457,098 | 254 | 254 | |
| F-802003.TR4-H122AG F-802025.TR4-H122BJ |
5 | 108 | 343,052 | 457,098 | 254 | 254 |
| 51) | 108 | 343,052 | 457,098 | 254 | 254 | |
| F-802029.TR4 | 5 | 208 | 346,075 | 48,895 | 358,775 | 358,775 |
