Z-538181.TR2 With Size 600x800x208.5 mm Double Row Tapered Roller Bearing
Overview
Design 7:
■ Bearings with sheet steel cages and inner intermediate ring.
■ Lubrication groove and lubrication holes as well as retaining hole
in the outer ring.
Double row tapered roller bearings arranged in O-arrangement; without seals; temperatures from –30 °C to +150 °C, depending on the lubricant.
Bore diameter-600 mm; Outside diameter-800 mm;Width-208.5 mm; Mass-262 kg;Cr=3700 kN;C0r=9100 kN;Cur=750 kN.
Specifications

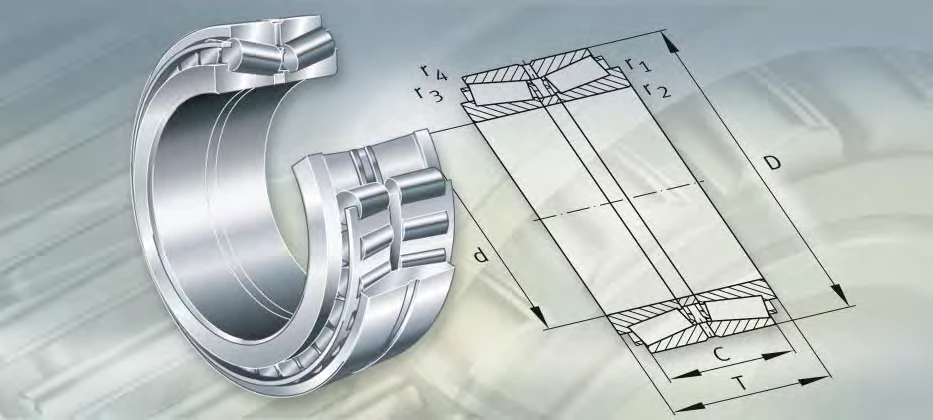

| Dimensions &Technical Datasheets | |
| Part NO. | Z-538181.TR2 - Double Row Tapered Roller Bearing |
| Brand | FAG made in GERMANY and SDVV/ZBM brand made in China |
| Main Dimensions | 600x800x208.5 mm |
| d | 600 mm |
| D | 800 mm |
| T | 208.5 mm |
| C | 160 mm |
| e | 0.32 mm |
| r1, r2 min. | 6 mm |
| r3, 4 min | 2.5 mm |
| Cr | 3700 kN |
| C0r | 9100 kN |
| Cur | 750 kN |
| M | 262 kg |
Similar Types For Your More Options
| Designation | Design | Mass m ≈kg |
Dimensions | |||||
| d | D | T | C | r1,r₂ min. |
r3,r4 min. |
|||
| Z-538181.TR2 | 7 | 262 | 600 | 800 | 2,085 | 160 | 6 | 25 |
| Z-538183.TR2 | 7 | 473 | 600 | 870 | 270 | 198 | 75 | 3 |
| Z-538182.TR2 | 7 | 293 | 630 | 850 | 242 | 182 | 75 | 25 |
| Z-510041.TR2 | 7 | 422 | 710 | 950 | 240 | 175 | 75 | 3 |
| Z-534867.TR2 | 6 | 753 | 710 | 1030 | 315 | 220 | 95 | 4 |
| Z-564801.TR2 | 7 | 587 | 800 | 1060 | 270 | 204 | 6 | 25 |
| Z-538339.TR2 | 7 | 638 | 850 | 1120 | 268 | 190 | 75 | 3 |
| Z-538341.TR2 | 7 | 883 | 950 | 1250 | 298 | 220 | 95 | 4 |
| Z-568323.TR2 | 6 | 813 | 1250 | 1500 | 250 | 190 | 6 | 15 |
| Z-572139.TR2 | 6 | 1390 | 1450 | 1770 | 290 | 170 | 95 | 5 |
