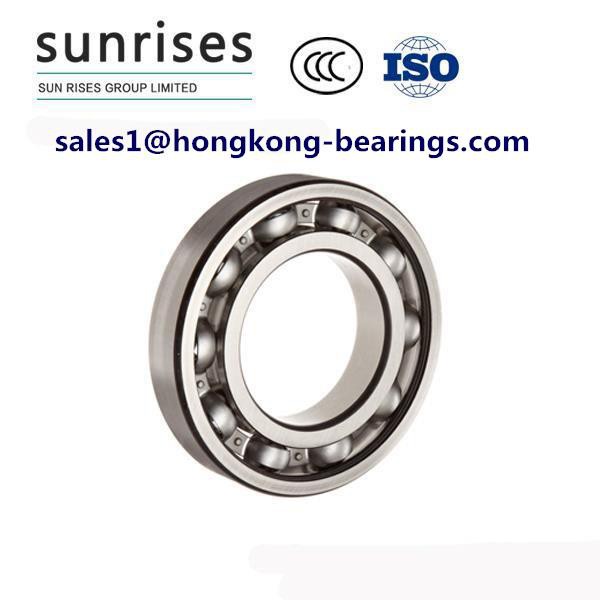

SS6300 SERIES Extra Light Stainless Steel Ball Bearings
Functionally similar to the SS6200 series, the SS6300 Series is produced with a larger ball complement and heavier races allowing greater radial, thrust and combined load capacity for a given bore size. This series is also capable of withstanding heavy shock loads. The SS6300 series is available in open, sealed or shielded configurations.
Data Sheet And Drawing
Models List
6300 SERIES BALL BEARINGS - EXTRA LIGHT | ||||||
NPB | Bore | O.D. | Width | Load Rating(KN) | Apx. Weight | |
Part No. | (mm) | (mm) | (mm) | Cor | Cr | (kg) |
SS 6300 | 10 | 35 | 11 | 3.48 | 7.65 | 0.05 |
SS 6301 | 12 | 37 | 12 | 5.08 | 9.72 | 0.06 |
SS 6302 | 15 | 42 | 13 | 5.42 | 11.5 | 0.08 |
SS 6303 | 17 | 47 | 14 | 6.58 | 13.5 | 0.11 |
SS 6304 | 20 | 52 | 15 | 7.88 | 15.8 | 0.14 |
SS 6305 | 25 | 62 | 17 | 11.5 | 22.2 | 0.22 |
SS 6306 | 30 | 72 | 19 | 15.2 | 27 | 0.35 |
Payment &Delivery
Since established in 1986, Sun Rises Group Limited has well-knows as one of the credible suppliers of double row deep groove ball bearings. With many warehouse and qualified distributors spread around the world, our company can not only assure you the quality of this double row deep groove ball bearings but also great after-sale service and timely delivery of our products. Waiting for your contact with our agent!
