Available 71809 CD/P4DBB - Super-Precision Single Row Angular Contact Ball Bearing
Overview
Super-precision, composed of 2x71809 CDGB/P4; Matched Back-to-back; High-speed E design; High speed capability and can accommodate heavier loads.One-piece inner and outer rings type.
Very high running accuracy; accommodates very high speeds.Two-point contact type; Extra light preload; P4A tolerance class; With steel balls; Without coating and sealing.Not lubricant.High-capacity D design.P4A accuracy class.
Suffix meaning: 718-Ultra light series;09-45mm bore size; CD-15° Contact Angle, High Capacity Design.P4A-Precision Rating; DB-Duplex Back-to-Back; B-Medium Preload.
Bore diameter-45 mm; Outside diameter-58 mm;Width-14 mm; Mass-0.078 kg; Contact angle-15 °;Cr=7.93 kN;C0r=10.6 kN.
Specifications
| Part NO. | 71809 CD/P4DBB -Single Row Angular Contact Ball Bearing |
| Brand | SKF brand made in GERMANY/SDVV brand made in China |
| Main Dimensions | 45x58x14 mm |
| d | 45 mm |
| D | 58 mm |
| B | 14 mm |
| Contact Angle | 15 ° |
| Number of rows | 2 |
| Cr | 7.93 kN |
| C0r | 10.6 kN |
| M | 0.078 kg |

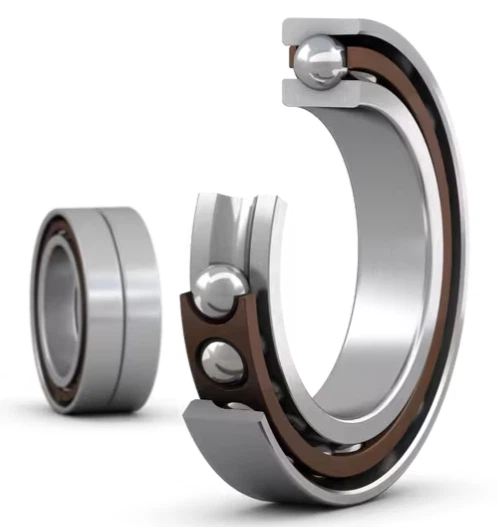

Real Related bearing picture
