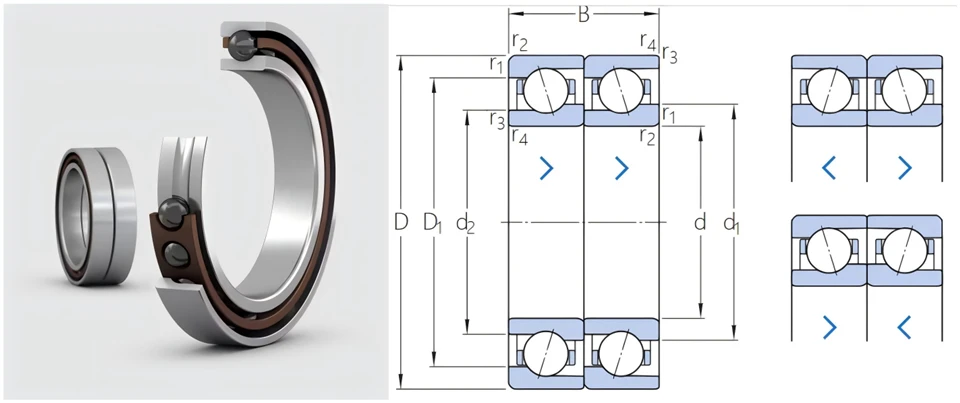

71909 ACE/HCP4ADGA- Super-Precision Single Row Angular Contact Ball Bearing
Overview
Super-precision, High-speed E design; High-speed capability and can accommodate heavier loads.
Very high running accuracy; Accommodate very high speeds.two-point contact type; Extra light preload; P4A tolerance class; With ceramic balls; Without coating and sealing.Not lubricant.
Super-precision, High-speed E design; High speed capability and can accommodate heavier loads.
Very high running accuracy; Accommodate very high speeds.two-point contact type; Extra light preload; P4A tolerance class; With ceramic balls; Without coating and sealing.Not lubricant.
Bore diameter-45 mm; Outside diameter-68 mm;Width-24 mm; Mass-0.236 kg; Contact angle-25 °Cr=15.9 kN;C0r=12.9 kN.
Specifications
| Part NO. | 71909 ACE/HCP4ADGA -Single Row Angular Contact Ball Bearing |
| Brand | SKF brand made in GERMANY/SDVV brand made in China |
| Main Dimensions | 45x68x24 mm |
| d | 45 mm |
| D | 68 mm |
| B | 24 mm |
| Contact Angle | 25 ° |
| Number of rows | 2 |
| d1 | 52.7 mm |
| d2 | 51 mm |
| Cr | 15.9 kN |
| C0r | 12.9 kN |
| M | 0.236 kg |
