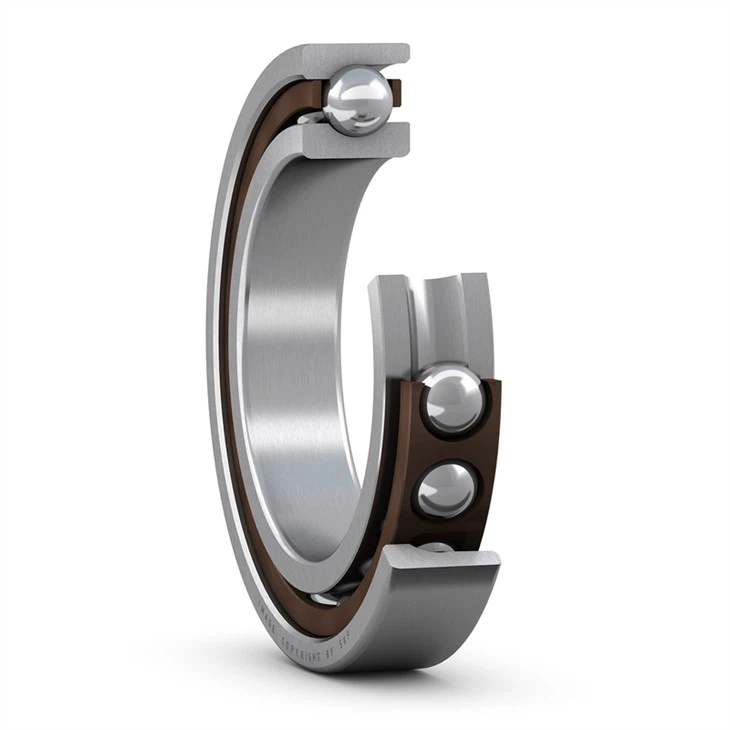

Feature:7216 CD/P4A 80x140x26mm Angular Contact Ball Bearings.These super-precision, high-capacity, single row angular contact ball bearings, with 15° contact angle, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures.
Advantage： 15° contact angle
Very high running accuracy
Very high load carrying capacity
Relatively high speed and stiffness
Drawing：
Parameter：
|
d |
80 mm |
|
D |
140 mm |
|
B |
26 mm |
|
d1 |
99.5 mm |
|
d2 |
99.5 mm |
|
D1 |
120.5 mm |
|
a |
27.8 mm |
Packing pictures
Every day, many trucks leave the factory and are sent to all over the world. Our company delivers timely and fast, and never delays the time for customers to wait, so if you are interested in cooperating with us, we will never let you down.
