7384-B-MP With Size 420x850x136 mm Single Row Angular Contact Ball Bearings Are Available In Stock
Overview
Angular contact ball bearings with standardized main dimensions correspond to DIN 628-1.
The dimensional and geometrical tolerances of the standardized bearings correspond to tolerance class PN to DIN 620-2.
Extended 7384-B-MP-UL bearings are in stock too.
Single row 73...-B-MP series with MP-solid brass cage, Ball guided; The brass cage has good strength and heat resistance, which can keep the bearing structure stable at high speed and adapt to the heat generated by the bearing at high speed. Contact angle 40°.B-Design variant; Open type without seals, It could be used at operating temperatures from –30 °C to +200 °(Its rings dimensional stabilized up to 200°). Normal (PN) tolerance class; Could withstand radial and unidirectional axial loads, Can be lubricated with grease or oil.
Bore diameter-420 mm; Outside diameter-850 mm;Width-136 mm; Mass-395 kg;Cr=1060 kN;C0r=2360 kN;Limiting speed=1300 1/min.
Specifications

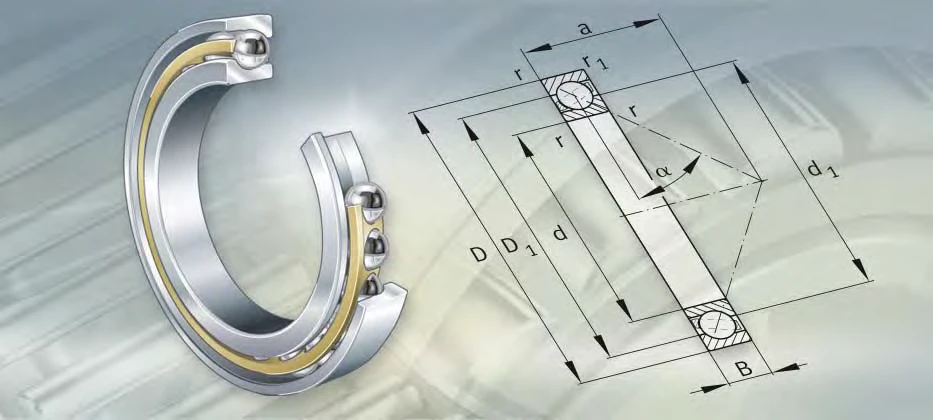

| Dimensions &Technical Datasheets | |
| Part NO. | 7384-B-MP-Single Row Angular Contact Ball Bearing |
| Brand | FAG brand made in GERMANY/SDVV brand made in China |
| Main Dimensions | 420x850x136 mm |
| d | 420 mm |
| D | 850 mm |
| B | 136 mm |
| rmin | 9.5 mm |
| D1 | 672 mm |
| Contact Angle | 40 ° |
| da min. | 460 mm |
| Da max. | 810 mm |
| ra max. | 8 mm |
| Cr | 1060 kN |
| C0r | 2360 kN |
| M | 395 kg |
