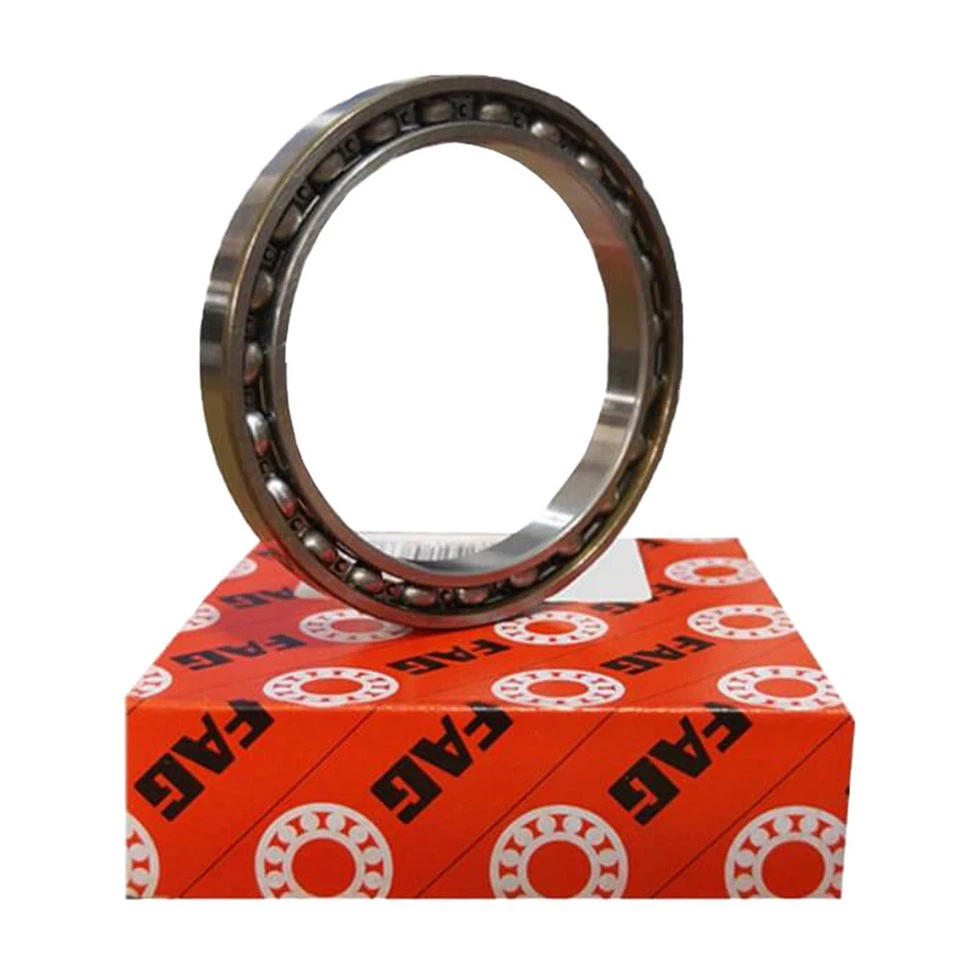

609/1180-M With Size 1180x1540x115 mm Single Row Deep Groove Ball Bearing Are Available In Stock
Overview
The dimensional and running tolerances of the bearing comply with to DIN 625-Single row deep groove ball bearing with ball-guided solid brass cages;This type without retaining slot,Open type;CN standard radial internal clearance;low frictional torque suitable for high speeds; It can be used up to an operating temperature of +120 °C.
Bore diameter-1180 mm; Outside diameter-1540 mm;Width-115 mm; Mass-600 kg;Cr=1060 kN;C0r=3150 kN;Limiting speed=800 1/min;Reference speed=360 1/min
Main application range:
large dimension gearboxes,
big electric motors,
converter drive units
roll stands......
Specifications

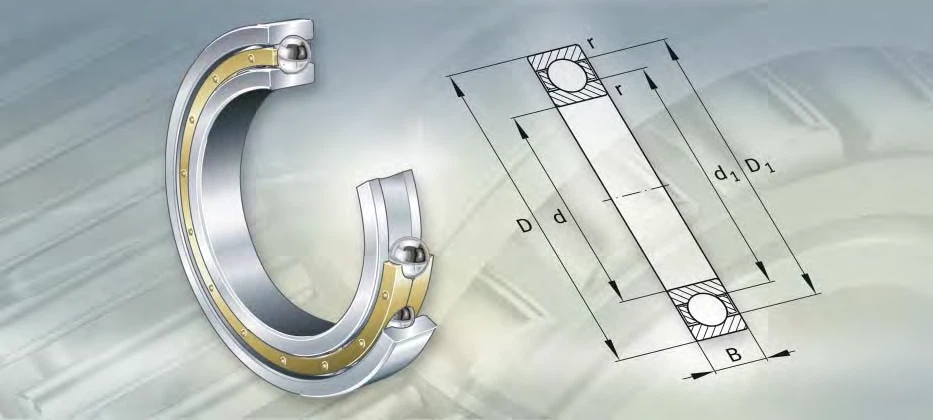

| Dimensions &Technical Datasheets | |
| Part NO. | 609/1180-M-Single Row Deep Groove Ball Bearing |
| Brand | FAG brand made in GERMANY/SDVV made in China |
| Main Dimensions | 1180x1540x115 mm |
| d | 1180 mm |
| D | 1540 mm |
| B | 115 mm |
| rmin. | 7.5 mm |
| D1 | 1411 mm |
| da min. | 1208 mm |
| Da max. | 1512 mm |
| ra max. | 6 mm |
| Cr | 1060 kN |
| C0r | 3150 kN |
| M | 600 kg |
Do you want to check our more bearing codes?
| Bearing Codes | d(mm) | D(mm) | B(mm) | Weight(kg) |
| BK0306-TV | 3 | 6.5 | 6 | 1 g |
| BK0408 | 4 | 8 | 8 | 2.1 g |
| BK0509 | 5 | 9 | 9 | 2.1 g |
| BK0609 | 6 | 10 | 9 | 2.6 g |
| BK0709 | 7 | 11 | 9 | 2.9 g |
| BK0808 | 8 | 12 | 8 | 3 g |
| BK0810 | 8 | 12 | 10 | 3.4 g |
| BK0910 | 9 | 13 | 10 | 4.3 g |
| BK0912 | 9 | 13 | 12 | 4.9 g |
| BK1010 | 10 | 14 | 10 | 4.3 g |
| BK1012 | 10 | 14 | 12 | 5 g |
| BK1015 | 10 | 14 | 15 | 6.2 g |
| BK1210 | 12 | 16 | 10 | 5.2 g |
| BK12X18X12 | 12 | 18 | 12 | 0 |
| BK1212 | 12 | 18 | 12 | 10 g |
| BK1312 | 13 | 19 | 12 | 11 g |
| BK1412 | 14 | 20 | 12 | 12 g |
| BK1512 | 15 | 21 | 12 | 13 g |
| BK1516 | 15 | 21 | 16 | 17 g |
| BK1522 | 15 | 21 | 22 | 27 g |
| BK1612 | 16 | 22 | 12 | 14 g |
| BK1616 | 16 | 22 | 16 | 18 g |
| BK1622 | 16 | 22 | 22 | 31 g |
| BK1712 | 17 | 23 | 12 | 18 g |
| BK1812 | 18 | 24 | 12 | 15 g |
| BK1816 | 18 | 24 | 16 | 20 g |
| BK2012 | 20 | 26 | 12 | 18 g |
| BK2016 | 20 | 26 | 16 | 22 g |
| BK2020 | 20 | 26 | 20 | 27 g |
| BK2030 | 20 | 26 | 30 | 45 g |
| BK2212 | 22 | 28 | 12 | 18 g |
| BK2216 | 22 | 28 | 16 | 24 g |
| BK2220 | 22 | 28 | 20 | 40 g |
| BK2512 | 25 | 32 | 12 | 27 g |
| BK2516 | 25 | 32 | 16 | 32 g |
| BK2520 | 25 | 32 | 20 | 38 g |
| BK2526 | 25 | 32 | 26 | 48 g |
| BK2538 | 25 | 32 | 38 | 77 g |
| BK2816 | 28 | 35 | 16 | 40 g |
| BK2820 | 28 | 35 | 20 | 49 g |
| BK3012 | 30 | 37 | 12 | 28 g |
| BK3016 | 30 | 37 | 16 | 38 g |
| BK3020 | 30 | 37 | 20 | 47 g |
| BK3026 | 30 | 37 | 26 | 58 g |
| BK3038 | 30 | 37 | 38 | 95 g |
| BK3512 | 35 | 42 | 12 | 40 g |
| BK3516 | 35 | 42 | 16 | 84 g |
| BK3520 | 35 | 42 | 20 | 53 g |
| BK4012 | 40 | 47 | 12 | 54 g |
| BK4016 | 40 | 47 | 16 | 81 g |
| BK4020 | 40 | 47 | 20 | 62 g |
| BK4516 | 45 | 52 | 16 | 67 g |
| BK4520 | 45 | 52 | 20 | 72 g |
| BK5020 | 50 | 58 | 20 | 140 g |
| BK5025 | 50 | 58 | 25 | 122 g |
| BK5520 | 55 | 63 | 20 | 150 g |
| BK5528 | 55 | 63 | 28 | 211 g |
| BK6012 | 60 | 68 | 12 | 123 g |
| BK6020 | 60 | 68 | 20 | 167 g |
| BK6032 | 60 | 68 | 32 | 261 g |
| SCH57 | 7.94 | 14.29 | 11.11 | 0 7g |
| SCH68 | 9.53 | 15.88 | 12.7 | 0 9g |
| SCH78 | 11.11 | 17.46 | 12.7 | 0 9g |
| SCH87 | 12.7 | 19.05 | 11.11 | 0 9g |
| SCH88 | 12.7 | 19.05 | 12.7 | 0 10g |
| SCH812 | 12.7 | 19.05 | 19.05 | 0 16g |
| SCH98 | 14.29 | 20.64 | 12.7 | 0 12g |
| SCH912 | 14.29 | 20.64 | 19.05 | 0 17g |
| SCH108 | 15.88 | 22.23 | 12.7 | 0 13g |
| SCH1010 | 15.88 | 22.23 | 15.88 | 0 16g |
| SCH1016 | 15.88 | 22.23 | 25.4 | 0 25g |
| SCH1110 | 17.46 | 23.81 | 15.88 | 0 17g |
| SCH1112 | 17.46 | 23.81 | 19.05 | 0 20g |
| SCH1212 | 19.5 | 26.99 | 19.05 | 0 27g |
| SCH1310 | 20.64 | 28.58 | 15.88 | 0 25g |
| SCH1412 | 22.23 | 30.16 | 19.05 | 0 32g |
| SCH1416 | 22.23 | 30.16 | 25.4 | 0 43g |
| SCH1612 | 25.4 | 33.34 | 19.05 | 0 36g |
| SCH1616 | 25.4 | 33.34 | 25.4 | 0 47g |
| SCH1812 | 28.58 | 38.1 | 19.05 | 0 48g |
| SCH1810 | 28.58 | 38.1 | 15.88 | 0 43g |
| SCH1816 | 28.58 | 38.1 | 25.4 | 0 63g |
| SCH1818 | 28.58 | 38.1 | 28.58 | 0 85g |
| SCH208 | 31.75 | 41.28 | 12.7 | 0 36g |
| SCH2016 | 31.75 | 41.28 | 25.4 | 0 71g |
| SCH2020 | 31.75 | 41.28 | 31.75 | 0 79g |
| SCH2212 | 34.93 | 44.45 | 19.05 | 0 57g |
| SCH2216 | 34.93 | 44.45 | 25.4 | 0 77g |
| HN0808 | 8 | 12 | 8 | 3 g |
| F-45741 | 8 | 13 | 9.2 | 4 g |
| F-66895 | 8 | 14.5 | 10 | 7 g |
| HN1010 | 10 | 14 | 10 | 4.6 g |
| F-45730 | 10 | 16 | 8.95 | 6.3 g |
| F-90750 | 10 | 19 | 12.2 | 15.1 g |
| HN1210 | 12 | 16 | 10 | 5.3 g |
| HN1212 | 12 | 18 | 12 | 10.5 g |
| HN1412 | 14 | 20 | 12 | 12 g |
| HN1516 | 15 | 21 | 16 | 14 g |
| HN1612 | 16 | 22 | 12 | 13 g |
| HN1816 | 18 | 24 | 16 | 20 g |
| HN2016 | 20 | 26 | 16 | 22 g |
| HN2020 | 20 | 26 | 20 | 29.5 g |
| F-110157 | 21.24 | 28 | 14 | 21.1 g |
| HN2520 | 25 | 32 | 20 | 39.6 g |
| HN2820 | 28 | 35 | 20 | 44 g |
| HN3520 | 35 | 42 | 20 | 54 g |
| HN4020 | 40 | 47 | 20 | 60.5 g |
| HN4520 | 45 | 52 | 20 | 66 g |
| HN4525 | 45 | 52 | 25 | 85 g |
| HN5020 | 50 | 58 | 20 | 85.3 g |
| HN5025 | 50 | 58 | 25 | 107 g |
