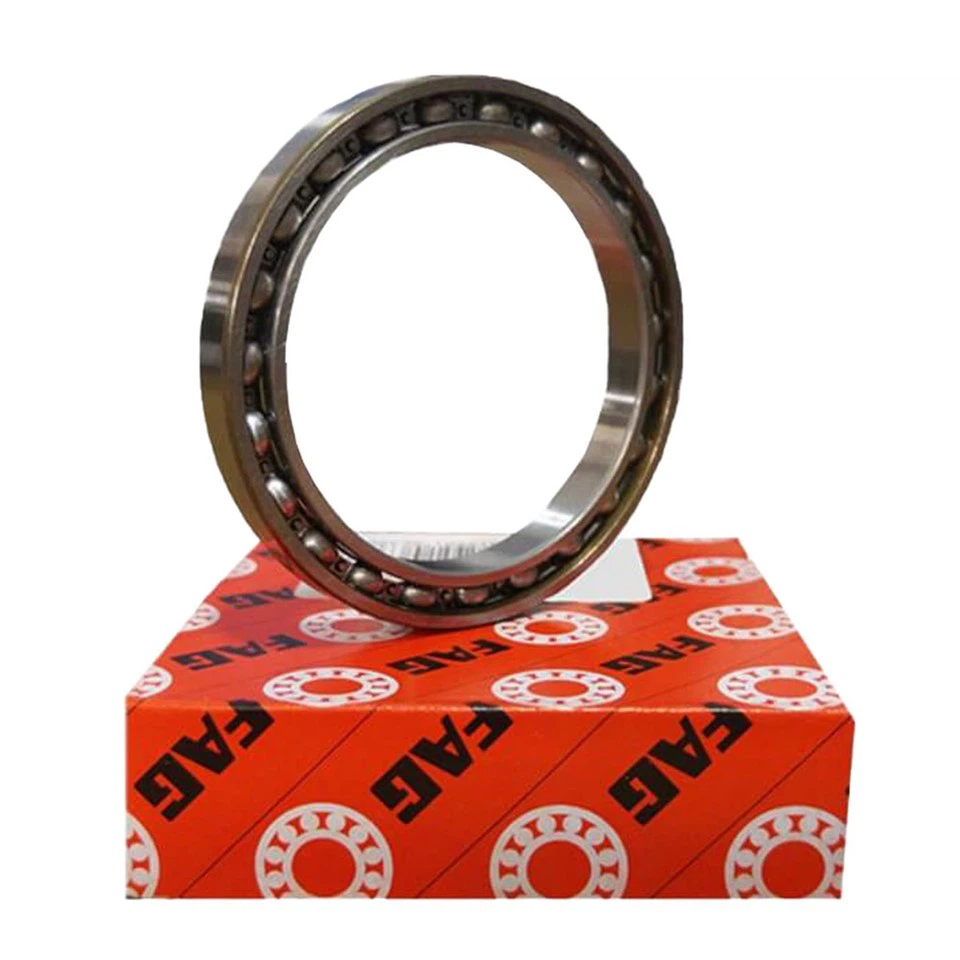

619/750-MB-C3 Single Row Deep Groove Ball Bearing
Overview
Bearing standards comply with to DIN 625-1; Super sizes single row deep groove ball bearing with solid brass cage; inner ring guided ; Open type, C3 internal clearance;
Bore diameter-750 mm; Outside diameter-1000 mm;Width-112 mm; Mass-248 kg;Cr=720 kN;C0r=1660 kN;Limiting speed=1300 1/min;Reference speed=690 1/min.
Specifications
| Dimensions &Technical Datasheets | |
| Part NO. | 619/750-MB-C3-Single Row Deep Groove Ball Bearing |
| Brand | FAG,SDVV brand made in GERMANY; |
| Main Dimensions | 750x1000x112 mm |
| d | 750 mm |
| D | 1000 mm |
| B | 112 mm |
| rmin. | 6 mm |
| D1 | 919.2 mm |
| da min. | 773 mm |
| Da max. | 977 mm |
| ra max. | 5 mm |
| Cr | 720 kN |
| C0r | 1660 kN |
| M | 248 kg |
