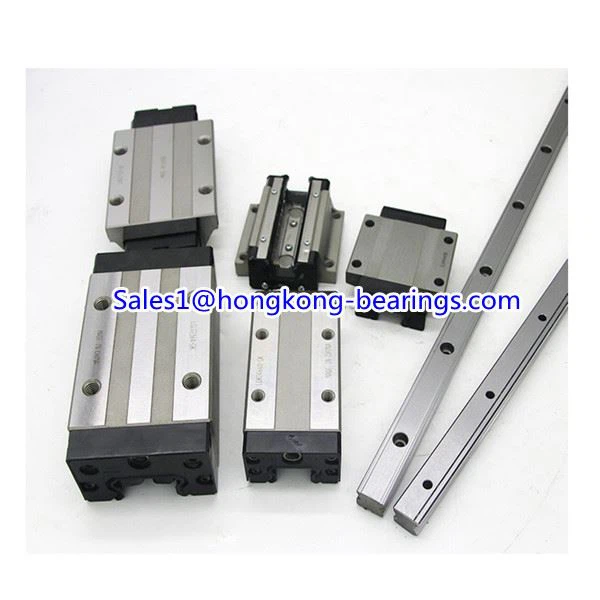

SVR 25LC Linear Guide slider 25*31*72*102 mm specification
| Designation | SVR 25LC |
| Category | Caged Ball LM Guide Model SVR/SVS |
| Width W1(mm) | 25 |
| Height M(mm) | 31 |
| Width W(mm) | 72 |
| Length L(mm) | 102 |
| LM block(kg) | 0.8 |
| Cr (kN) Basic dynamic load rating | 57 |
| C0r (kN) Basic static load rating | 86.3 |
| Static permissible moment kN•m(one block) | 0.944 |
| Static permissible moment kN•m(two blocks) | 4.67 |
| Grease nipple | B-M6F |
| Radial clearance | Normal grade |
Extended SVR-25LC Linear Guide Rail Block 25*31*72*102
| Model No. | Outer dimensions | LM rail dimensions | Mass | ||||||||
| Height (M) | Width (W) | Length(L) | Width W1 ±0.05 | W2 | Height M1 | Pitch F | d1*d2*h | Length Max | LM Block kg | LM Rail kg/m | |
| SVR 25C SVR 25LC | 31 | 72 | 82.8 102 | 25 | 23.5 | 17 | 40 | 6*9.5*8.5 | 3060 | 0.6 0.8 | 2.9 |
| SVR 30C SVR 30LC | 38 | 90 | 98 120.5 | 28 | 31 | 21 | 80 | 7*11*9 | 3000 | 1.1 1.5 | 4.2 |
