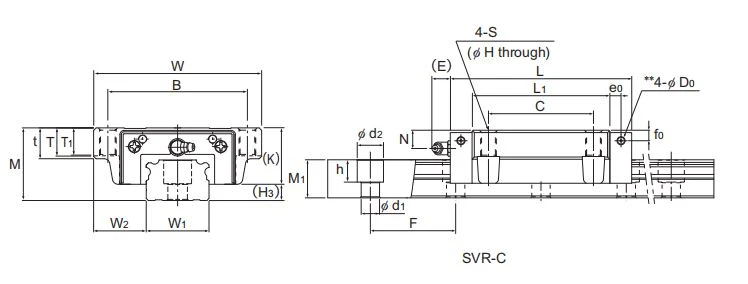

SVR 45LC Linear Guide slider 45*52*120*171 mm specification
| Designation | SVR 45LC |
| Category | Caged Ball LM Guide Model SVR/SVS |
| Width W1(mm) | 45 |
| Height M(mm) | 52 |
| Width W(mm) | 120 |
| Length L(mm) | 171 |
| LM block(kg) | 3.6 |
| Cr (kN) Basic dynamic load rating | 161 |
| C0r (kN) Basic static load rating | 233 |
| Static permissible moment kN•m(one block) | 4.52 |
| Static permissible moment kN•m(two blocks) | 22.1 |
| Grease nipple | B-PT1/8 |
| Radial clearance | Normal grade |
Extended SVR 45LC Linear Guide Rail Block 45*52*120*171 mm
| Model No. | Outer dimensions | LM rail dimensions | Mass | ||||||||
| Height (M) | Width (W) | Length(L) | Width W1 ±0.05 | W2 | Height M1 | Pitch F | d1*d2*h | Length Max | LM Block kg | LM Rail kg/m | |
| SVR 35C SVR 35LC | 44 | 100 | 109.5 135 | 34 | 33 | 24.5 | 80 | 9*14*12 | 3000 | 1.6 2 | 6.0 |
| SVR 45C SVR 45LC | 52 | 120 | 138.2 171 | 45 | 37.5 | 29 | 105 | 14*20*17 | 3090 | 2.7 3.6 | 9.5 |
