SRG 35SLC Linear Guide slider 48*100*180.8 mm specification
| Designation | SRG 35SLC |
| Category | LM Guide Model SRG |
| Height M(mm) | 48 |
| Width W(mm) | 100 |
| Length L(mm) | 180.8 |
| LM block(kg) | 3.2 |
| Cr (kN) Basic dynamic load rating | 87.9 |
| C0r (kN) Basic static load rating | 199 |
| Static permissible moment kN•m(one block) | 4.53 |
| Static permissible moment kN•m(two blocks) | 23.9 |
| Grease nipple | B-M6F |
| Radial clearance | Normal |
| Lubricator | No |
| Contamination protection | No |

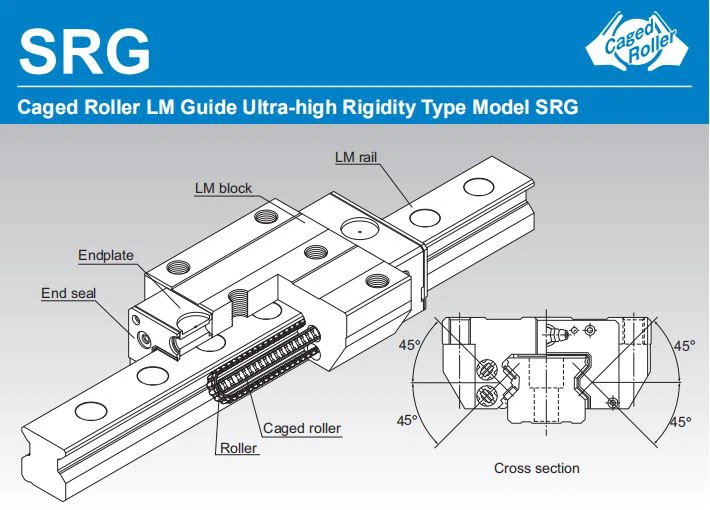

About SRG 35SLC Linear Motion Guide 48*100*180.8
| Category | LM Guide Ultra-high Rigidity Type Model SRG-SLR |
| Overview | The SRG Model is an ultra-high rigidity linear motion guide. For the SLR model, the LM block has the same cross-sectional shape as model SRG-LR, but has a longer overall block length and a greater rated load. |
| Features and Benefits | 1. high rigidity 2. all four directions equal load 3. smooth linear motion 4. low maintenance need 5. universal application due to global standard size |
| Application | 1. automatic machinery, such as robotic arm and associated products 2. medical equipments 3. automatic assemly lines |
Extended SRG-35SLC Linear Bearing Block LM Guide Rail
| Model No. | Outer dimensions | LM rail dimensions | Mass | |||||||||
| Height (M) | Width (W) | Length(L) | H3 | Width W1 ±0.05 | W2 | Height M1 | Pitch F | d1*d2*h | Length Max | LM Block kg | LM Rail kg/m | |
| SRG 35C SRG 35LC SRG 35SLC | 48 | 100 | 125 155 180.8 | 6 | 34 | 33 | 30 | 40 | 9*14*12 | 3000 | 1.9 2.4 3.2 | 6.9 |
| SRG 45C SRG 45LC SRG 45SLC | 60 | 120 | 155 190 231.5 | 8 | 45 | 37.5 | 37 | 52.5 | 14*20*17 | 3090 | 3.7 4.5 6.3 | 11.6 |
