NU1092-K-M1 With Size 460x680x100 mm Single-Row Cylindrical Roller Bearing
Overview
Single row non-locating cylindrical roller bearings,With brass cage, In series NU, the outer ring has two ribs, while the inner ring has no ribs.K-tapered bore bearing, taper 1:12;M1-Two Piece Brass Cage Roller Guided;Running accuracy in P6. Operating temperature min.Tmin:-30 °C;Tmax. 150 °C.C3-Normal radial internal clearance.
Bore diameter-460 mm;Outside diameter-680 mm;Width-100 mm; Mass-122 kg;Cr=1660 kN;C0r=3000 kN;Limiting speed=1600 1/min;Reference speed=800 1/min.
Extended similar type NU 1092 MA;NU1092-TB-M1;NU1092-M1;NU1092-M1-C3 are also In-stock for your more industrial solutions.
Specifications

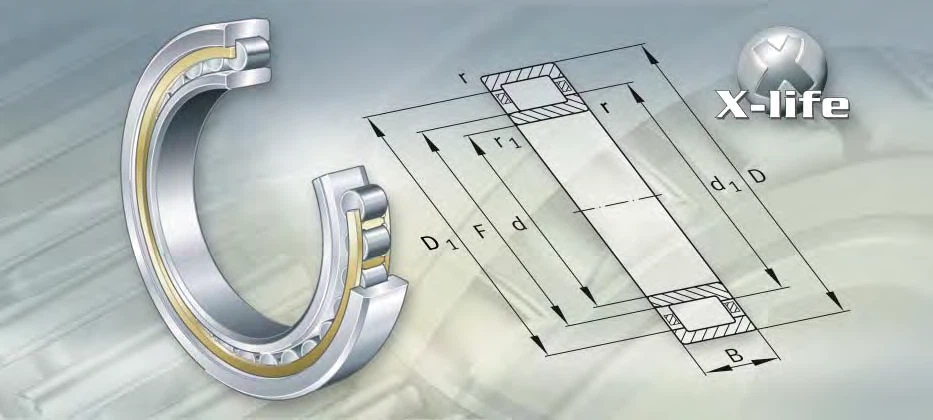

| Dimensions &Technical Datasheets | |
| Part NO. | NU1092-K-M1 - Single-Row Cylindrical Roller Bearings |
| Brand | FAG brand made in GERMANY/SDVV brand made in China |
| Main Dimensions | 460x680x100 mm |
| d | 460 mm |
| D | 680 mm |
| B | 100 mm |
| rmin | 6 mm |
| Limiting speed | 1600 1/min |
| Reference speed | 800 1/min |
| da | 483 mm |
| Da | 657 mm |
| ra max. | 5 mm |
| Cr | 1660 kN |
| C0r | 3000 kN |
| M | 122 kg |
Extended Same Type Bearing Codes
| Designation | De- sign |
Mass m ≈kg |
Dimensions | ||||||||
| d | D | B | r min. |
r1 min. |
s1) | E | F | D₁ ≈ |
|||
| NU2992-M1 | 3 | 84 | 460 | 620 | 95 | 4 | 4 | 87 | 580 | 500 | 564 |
| NU3992-E-M1 | 3 | 104 | 460 | 620 | 118 | 4 | 4 | 62 | 584 | 500 | 570 |
| NU1092-K-M1 | 3 | 122 | 460 | 680 | 100 | 6 | 一 | 112 | 624 | 516 | 6,039 |
| NU1092-K-M1A | 3 | 124 | 460 | 680 | 100 | 6 | 一 | 112 | 624 | 516 | 6,039 |
| NU1092-M1 | 3 | 125 | 460 | 680 | 100 | 6 | 6 | 112 | 624 | 516 | 6,039 |
| NU1092-M1A | 3 | 126 | 460 | 680 | 100 | 6 | 6 | 112 | 624 | 516 | 6,039 |
| NU3092-K-M1A | 3 | 206 | 460 | 680 | 163 | 6 | 一 | 144 | 624 | 516 | 6,039 |
| NU3192-M1A | 3 | 436 | 460 | 760 | 240 | 75 | 75 | 20 | 701 | 531 | 674 |
| NU1292-M1 | 3 | 401 | 460 | 830 | 165 | 75 | 75 | 141 | 759 | 539 | 724 |
| NU2292-E-M1 | 3 | 511 | 460 | 830 | 212 | 75 | 75 | 20 | 756 | 544 | 722 |
| NU2292-E-M1A | 3 | 521 | 460 | 830 | 212 | 75 | 75 | 20 | 756 | 544 | 722 |
| NU2292-E-MPA | 3 | 513 | 460 | 830 | 212 | 75 | 75 | 20 | 756 | 544 | 722 |
| Z-527461.ZL | 2 | 346 | 480 | 600 | 56 | 3 | 3 | 10 | 570 | 一 | 一 |
| NU1896-M1 | 3 | 352 | 480 | 600 | 56 | 3 | 3 | 66 | 570 | 514 | 5,605 |
| NU3896-M1 | 3 | 578 | 480 | 600 | 90 | 3 | 3 | 10 | 570 | 514 | 5,605 |
| NU1996-M1 | 3 | 742 | 480 | 650 | 78 | 5 | 5 | 88 | 605 | 525 | 589 |
| NU2996-M1 | 3 | 988 | 480 | 650 | 100 | 5 | 5 | 63 | 607 | 523 | 593 |
| NU3996-E-M1 | 3 | 125 | 480 | 650 | 128 | 5 | 5 | 67 | 613 | 523 | 598 |
| N1096-M1 | 1 | 128 | 480 | 700 | 100 | 6 | 6 | 107 | 644 | 一 | 一 |
| NU1096-M1 | 3 | 129 | 480 | 700 | 100 | 6 | 6 | 107 | 644 | 536 | 6,239 |
| NU1096-M1A | 3 | 132 | 480 | 700 | 100 | 6 | 6 | 107 | 644 | 536 | 6,239 |
| NU3096-M1 | 3 | 219 | 480 | 700 | 165 | 6 | 6 | 15 | 644 | 536 | 6,239 |
| NU3196-M1 | 3 | 483 | 480 | 790 | 248 | 75 | 75 | 22 | 726 | 556 | 6,988 |
| NU1296-M1 | 3 | 468 | 480 | 870 | 170 | 75 | 75 | 105 | 794 | 564 | 757 |
| Z-537024.ZL | 2 | 296 | 500 | 620 | 45 | 3 | 3 | 7 | 587 | 一 | 一 |
| Z-527462.ZL | 2 | 35 | 500 | 620 | 56 | 3 | 3 | 10 | 590 | 一 | 一 |
| N18/500-M1 | 1 | 361 | 500 | 620 | 56 | 3 | 3 | 66 | 590 | 一 | 一 |
| NU18/500-M1 | 3 | 369 | 500 | 620 | 56 | 3 | 3 | 66 | 590 | 534 | 580 |
| N28/500-M1 | 1 | 482 | 500 | 620 | 72 | 3 | 3 | 8 | 590 | 一 | 一 |
| NU28/500-M1 | 3 | 485 | 500 | 620 | 72 | 3 | 3 | 8 | 590 | 534 | 580 |
| NU28/500-M1A | 3 | 491 | 500 | 620 | 72 | 3 | 3 | 8 | 590 | 534 | 580 |
| NU38/500-M1 | 3 | 605 | 500 | 620 | 90 | 3 | 3 | 10 | 590 | 534 | 580 |
| NU19/500-M1 | 3 | 768 | 500 | 670 | 78 | 5 | 5 | 88 | 625 | 545 | 609 |
