NU3184-M1 With Size 420x700x224 mm Single-Row Cylindrical Roller Bearing
Overview
Single row non-locating cylindrical roller bearings,With brass cage, In series NU, the outer ring has two ribs, while the inner ring has no ribs.E-Increased capacity design;Running accuracy in P6. Operating temperature min.Tmin:-30 °C;Tmax. 150 °C.Normal radial internal clearance.
Bore diameter-420 mm;Outside diameter-700 mm;Width-224 mm; Mass-352 kg;Cr=4900 kN;C0r=8800 kN;Limiting speed=1400 1/min;Reference speed=480 1/min.
Extended similar type NU 3184 ECMA;NU3184-M1A;NU3184;NU3184 ECMA/HB1are also In-stock for your more industrial solutions.
Specifications

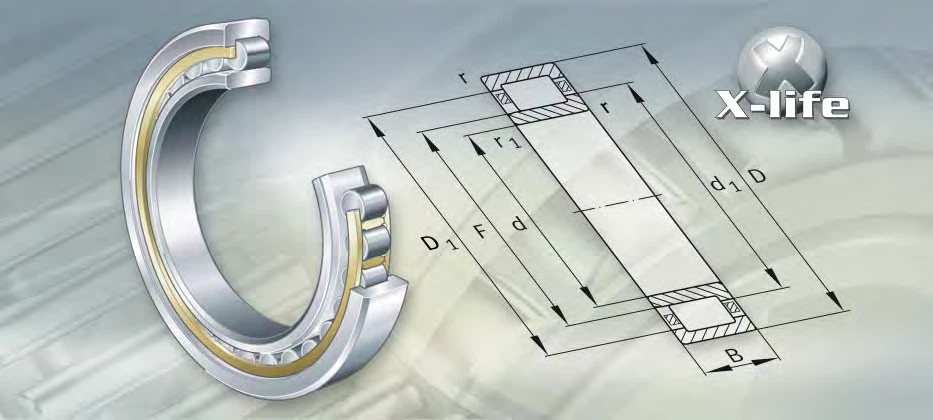

| Dimensions &Technical Datasheets | |
| Part NO. | NU3184-M1 - Single-Row Cylindrical Roller Bearings |
| Brand | FAG brand made in GERMANY/SDVV brand made in China |
| Main Dimensions | 420x700x224 mm |
| d | 420 mm |
| D | 700 mm |
| B | 224 mm |
| rmin | 6 mm |
| Limiting speed | 1400 1/min |
| Reference speed | 480 1/min |
| da | 446 mm |
| Da | 674 mm |
| ra max. | 5 mm |
| Cr | 4900 kN |
| C0r | 8800 kN |
| M | 352 kg |
