Overview

322 series paired tapered roller bearing set, X-arrangement; Main dimensions according to DIN 720, with pressed sheet steel, window cage,roller-guided.Normal (ISO 492:2014) tolerance class.

Suffix meaning:
A-Internal Design Modification
N11CA-Two X Arranged Tapered Roller Bearings, With Spacers Between The Cups (Formerly Known As K11)

Bore diameter-180 mm; Outside diameter-320 mm;Width-182 mm; Mass-61.3 kg;Cr=1730 kN;C0r=3300 kN;Cur=375 kN.Limiting speed=2 100 min–1;Reference speed=990 min–1.

Similar bearing code No.32236-A-N11CA-A430-480 is also available in stock.

Specifications

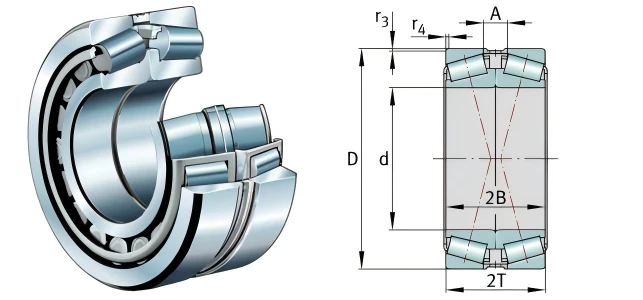

32236-A-N11CA drawing

Dimensions &Technical Datasheets
Part NO.	32236-A-N11CA - Matched Pairs Tapered Roller Bearing
Brand	FAG made in GERMANY and SDVV/ZBM brand made in China
Main Dimensions	180x320x182 mm
d	180 mm
D	320 mm
2B	172 mm
2T	182 mm
A	40 mm
da max	204 mm
r3, 4 min	4 mm
Cr	1730 kN
C0r	3300 kN
Cur	375 kN
Limiting speed for grease lubrication	2100 1/min
Thermal speed rating	990 1/min
M	61.3 kg

We also have the same series of products

Designation	Mass for bearing pair m ≈kg	Dimensions						Mounting dimensions
		d	D	2B	2T	r3,r4 min.	A	da max.	Da		Ca min.
		d	D	2B	2T	r3,r4 min.	A	da max.	min.	max.	Ca min.
30330-A-N11CA-A380-430	516	150	320	130	144	4	34	189	273	302	9
31330-X-N11CA	577	150	320	150	164	4	64	181	251	302	9
32330-A-N11CA	879	150	320	216	228	4	48	184	264	302	12
30332-A-N11CA	607	160	340	136	150	4	34	201	290	322	9
32332-N11CA	929	160	340	228	242	4	52	190	280	322	12
30334-A-N11CA	733	170	360	144	160	4	36	213	307	342	9
32334-N11CA	125	170	360	240	254	4	54	208	295	342	12
30236-A-N11CA	36	180	320	104	114	4	28	211	278	302	9
32236-A-N11CA	613	180	320	172	182	4	40	204	267	302	10
32236-A-N11CA-A430-480	613	180	320	172	182	4	40	204	267	302	10
30336-N11CA	837	180	380	150	166	4	38	230	327	362	10
32336-N11CA	128	180	380	252	268	4	56	215	310	362	14
30238-N11CA	419	190	340	110	120	4	28	224	298	322	9
32338-N11CA	164	190	400	264	280	5	62	230	330	377	14
30240-A-N11CA	529	200	360	116	128	4	32	237	315	342	9
30240-A-N11CA-A550-600	529	200	360	116	128	4	32	237	315	342	9
32240-A-N11CA	882	200	360	196	208	4	44	226	302	342	11
32240-A-N11CA-A400-450	882	200	360	196	208	4	44	226	302	342	11
30340-N11CA	107	200	420	160	178	5	44	250	360	397	10
32340-N11CA	168	200	420	276	292	5	62	240	345	397	14
32044-X-N11CA	494	220	340	152	152	3	38	243	300	326	12
32044-X-N11CA-A300-350	494	220	340	152	152	3	38	243	300	326	12
32244-A-N11CA	123	220	400	216	228	4	48	258	336	382	12
32244-A-N11CA-A400-450	123	220	400	216	228	4	48	258	336	382	12
30344-N11CA	136	220	460	176	194	5	48	274	392	437	10
32048-X-N11CA	583	240	360	152	152	3	38	261	318	346	12
32048-X-N11CA-A450-500	583	240	360	152	152	3	38	261	318	346	12
30248-N11CA	876	240	440	144	158	4	38	285	383	417	10
32248-A-N11CA	166	240	440	240	254	4	54	286	372	422	14
32248-A-N11CA-A450-500	166	240	440	240	254	4	54	286	372	422	14
30348-N11CA	177	240	500	190	210	5	50	296	425	477	12
32052-X-N11CA	775	260	400	174	174	4	44	287	352	382	14
32052-X-N11CA-A500-550	775	260	400	174	174	4	44	287	352	382	14
