32048-X-N11CA-A450-500 With Size 240x360x152 mm Matched Pairs Tapered Roller Bearing
Overview
320 series paired tapered roller bearing set, X-arrangement;The bearings with sheet steel material,window shape cage,roller-guided.X-life;Normal (ISO 492:2014) tolerance class.
Suffix meanning:
X-External dimensions matched to international standards
N11CA-two x arranged tapered roller bearings, with spacers between the cups
A450-500-axial clearance in µm
Bore diameter-240 mm; Outside diameter-360 mm;Width-152 mm; Mass-58.3 kg;Cr=1820 kN;C0r=3350 kN;Cur=420 kN.Limiting speed=2150 min–1;Reference speed=870 min–1.
Similar bearing code No.32048-X-N11CA;32048-X-N11CA-A450-500 are also available in stock.
Specifications

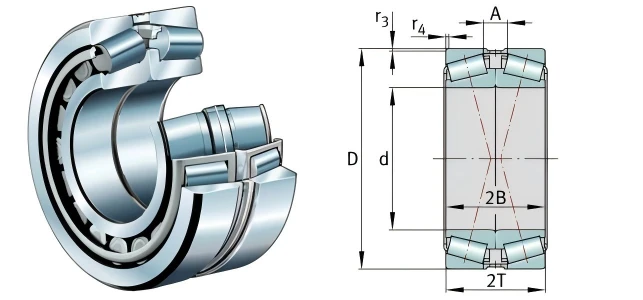

| Dimensions &Technical Datasheets | |
| Part NO. | 32048-X-N11CA-A450-500 - Matched Pairs Tapered Roller Bearing |
| Brand | FAG made in GERMANY and SDVV/ZBM brand made in China |
| Main Dimensions | 240x360x152 mm |
| d | 240 mm |
| D | 360 mm |
| 2B | 152 mm |
| 2T | 152 mm |
| A | 38 mm |
| da max | 261 mm |
| r3, 4 min | 3 mm |
| Cr | 1540 kN |
| C0r | 3350 kN |
| Cur | 360 kN |
| Limiting speed for grease lubrication | 1680 1/min |
| Thermal speed rating | 850 1/min |
| M | 58.3 kg |
