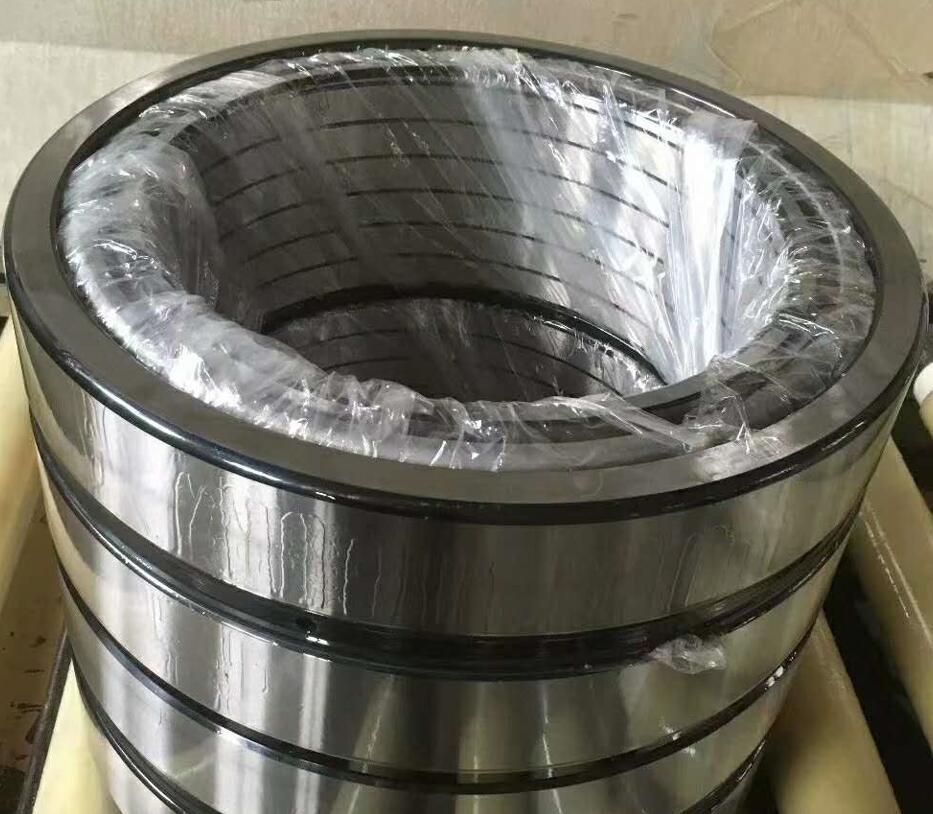

F-802023.TR4 Sealed Four Row Tapered roller bearing with Size 355.6x482.6x269.875 mm
Overview

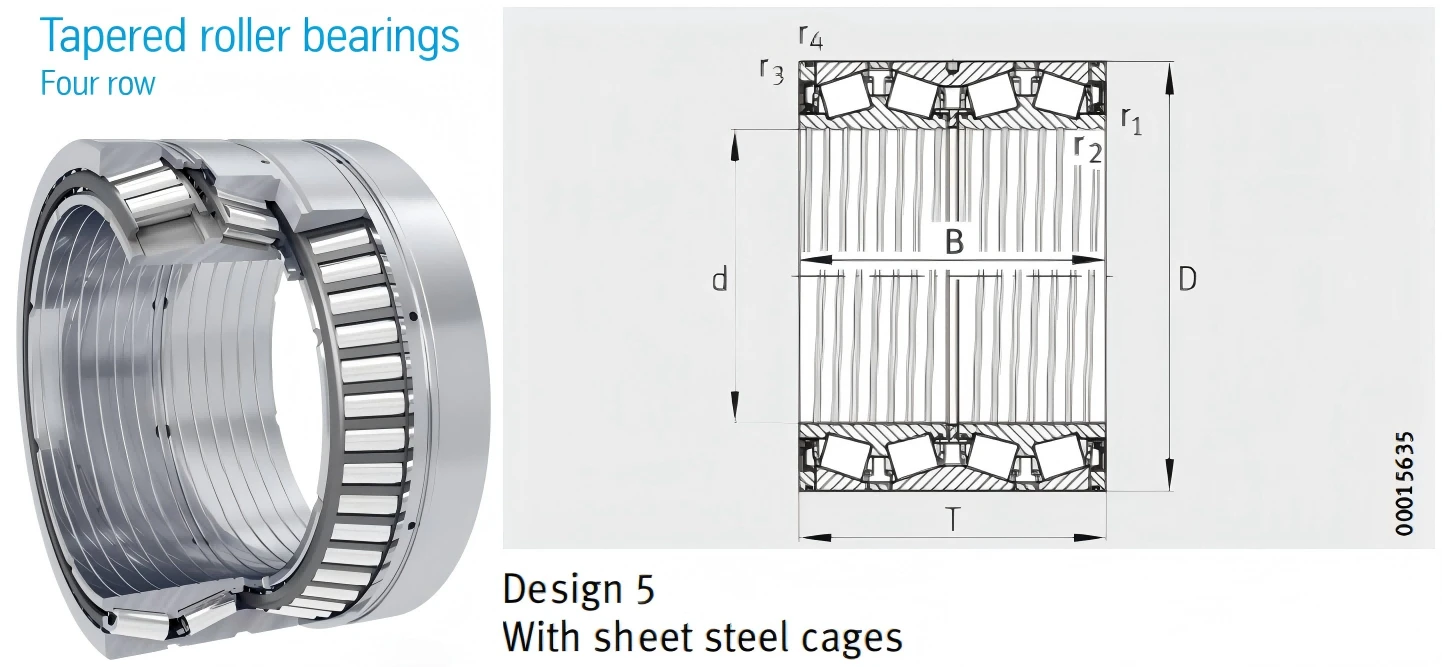

Design 5
The outer ring comprises a double ring and two single rings.
■ The inner ring bore has a helical groove.
■ The bearings have sheet metal cages.
■ Application:
– Mainly for steel rolling mills, oil drilling equipment, and heavy tower cranes.
Suffix meaning:
TR4- Four-row tapered roller bearing.
D1-Produced from a special, case-hardened type of steel and carbonitrided.
Sealed four-row tapered roller bearings; With sheet steel cages, window cage, roller-guided; Seals on both sides; TQO arrangement; Tolerance class: ABMA4, Class 4 (ANSI/ABMA 19.2:2013); Heat treatment: Standard.
Bore diameter-355.6 mm; Outside diameter-482.6 mm;Width-269.875 mm; Mass-136 kg;Cr=3150 kN;Cor=6400 kN;Cur=640 kN.
Its extended code no.F-802023.TR4-D1 is also available in stock for your more industrial solution.
Specifications
| Dimensions &Technical Datasheets | |
| Part NO. | F-802023.TR4 - Four Row Tapered Roller Bearing |
| Brand | FAG made in GERMANY and SDVV/ZBM brand made in China |
| Main Dimensions | 355.6x482.6x269.875 mm |
| d | 355.6 mm |
| D | 482.6 mm |
| B4 | 265.112 mm |
| C4 | 269.875 mm |
| e | 0.49 mm |
| r1, r2 min. | 1.5 mm |
| r3, r4 min | 3.3 mm |
| Cr | 3150 kN |
| C0r | 6400 kN |
| Cur | 640 kN |
| M | 136 kg |
We Also Have The Same series of Bearings
| Designation | Design | Mass m ≈kg |
Dimensions | |||
| d | D | T | B | |||
| F-802023.TR4 | 5 | 137 | 3,556 | 4,826 | 269,875 | 265,112 |
| Z-575032.TR4 | 7 | 152 | 3,556 | 4,826 | 269,875 | 3,302 |
| F-802111.TR4 | 5 | 177 | 3,556 | 48,895 | 3,175 | 3,175 |
| Z-579769.TR4 | 5 | 255 | 3,683 | 523,875 | 382,588 | 382,588 |
| F-802015.TR4 | 5 | 175 | 385,762 | 51,435 | 3,175 | 3,175 |
| Z-573326.TR4 | 5 | 192 | 4,064 | 5,461 | 288,925 | 268,288 |
| F-802039.TR4 | 5 | 182 | 4,064 | 5,461 | 288,925 | 288,925 |
| F-802078.TR4 | 5 | 209 | 409,575 | 5,461 | 334,962 | 334,962 |
| Z-576306.TR4 | 5 | 382 | 415,925 | 59,055 | 434,975 | 434,975 |
| F-802046.TR4-M | 6 | 385 | 415,925 | 59,055 | 434,975 | 434,975 |
| Z-564363.TR4 | 5 | 180 | 4,318 | 5,715 | 2,794 | 2,794 |
| F-802013.TR4-M | 6 | 230 | 4,318 | 5,715 | 33,655 | 33,655 |
| F-802044.TR4 | 5 | 359 | 440 | 590 | 480 | 480 |
| F-800917.TR4 | 5 | 378 | 440 | 650 | 35,305 | 35,305 |
| Z-574347.TR4 | 5 | 229 | 4,445 | 5,715 | 3,556 | 3,556 |
| Z-575857.TR4 | 6 | 470 | 447,675 | 635 | 46,355 | 46,355 |
| F-802180.TR4 | 5 | 275 | 450 | 595 | 368 | 368 |
| F-802188.TR4 | 5 | 196 | 4,572 | 5,969 | 2,794 | 276,225 |
| F-802042.TR4-M-H122AF | 6 | 201 | 4,572 | 5,969 | 2,794 | 276,225 |
| F-802167.TR4 | 5 | 286 | 460 | 610 | 360 | 360 |
| Z-572067.TR4 | 5 | 574 | 479,425 | 67,945 | 4,953 | 4,953 |
| F-802007.TR4-H122BH | 5 | 233 | 4,826 | 61,595 | 3,302 | 3,302 |
| F-802007.TR4-H122AG | 5 | 233 | 4,826 | 61,595 | 3,302 | 3,302 |
| Z-579990.TR4 | 5 | 246 | 4,826 | 61,595 | 3,302 | 3,302 |
| F-802260.TR4-H122DN-J44-W72D | 5 | 274 | 4,826 | 61,595 | 385 | 385 |
| F-802112.TR4 | 5 | 283 | 4,826 | 61,595 | 400 | 400 |
| F-802143.TR4-H122AG | 7 | 245 | 4,826 | 61,595 | 3,302 | 4,064 |
| F-802149.TR4 | 7 | 273 | 4,826 | 61,595 | 377,825 | 4,064 |
| F-802149.TR4-H122AF | 7 | 272 | 4,826 | 61,595 | 377,825 | 4,064 |
| Z-564537.TR4 | 7 | 247 | 4,826 | 61,595 | 3,302 | 4,191 |
| Z-579576.TR4 | 5 | 251 | 4,826 | 61,595 | 40,205 | 4,191 |
| F-802267.TR4 | 5 | 250 | 489,026 | 634,873 | 320,675 | 320,675 |
