HS7022-C-T-P4S Spindle bearings 110*170*28mm and technical data:
| d | 110 mm | |
| D | 170 mm | |
| B | 28 mm | |
| a | 32,8 mm | |
| Da | 159 mm | Tolerance: H12 |
| da | 121 mm | Tolerance: h12 |
| Etk max | 136,5 mm | |
| Etk min | 133,3 mm | |
| Etk1 max | 136,5 mm | |
| Etk1 min | 129,2 mm | |
| r1 min | 2 mm | |
| ra max | 2 mm | |
| ra1 max | 1 mm | |
| rmin | 2 mm | |
| α | 15 ° | Contact angle |
| m | 2,17 kg | ≈ Mass |
| Cr | 48000 N | Basic dynamic load rating, radial |
| C0r | 38000 N | Basic static load rating, radial |
| Cur | 3400 N | Fatigue limit load, radial |
| nG Fett | 12000 1/min | Limiting speed for grease lubrication |
| The limiting speeds are based on elastically preloaded single bearings. | ||
| nG Öl | 18000 1/min | Limiting speed for minimal quantity oil lubrication |
| The limiting speeds are based on elastically preloaded single bearings. | ||
| FV L | 168 N | Preload force |
| FV M | 503 N | Preload force |
| FV H | 1005 N | Preload force |
| KaE L | 499 N | Lift-off force |
| KaE M | 1566 N | Lift-off force |
| KaE H | 3257 N | Lift-off force |
| ca L | 77,2 N/µm | Axial rigidity |
| ca M | 121 N/µm | Axial rigidity |
| ca H | 164 N/µm | Axial rigidity |

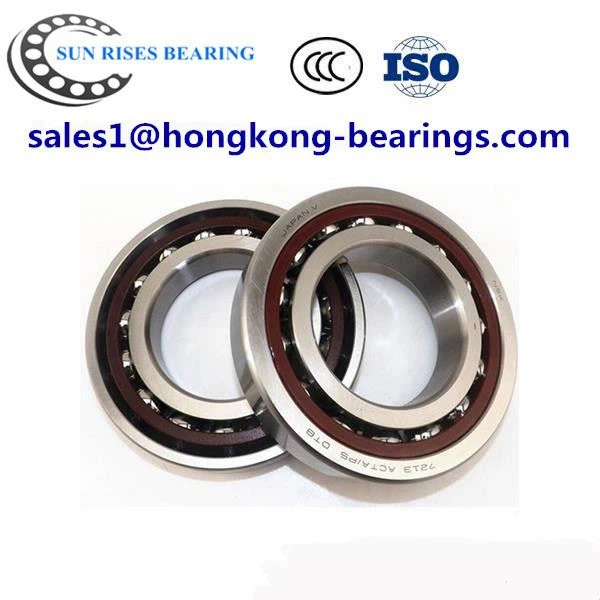

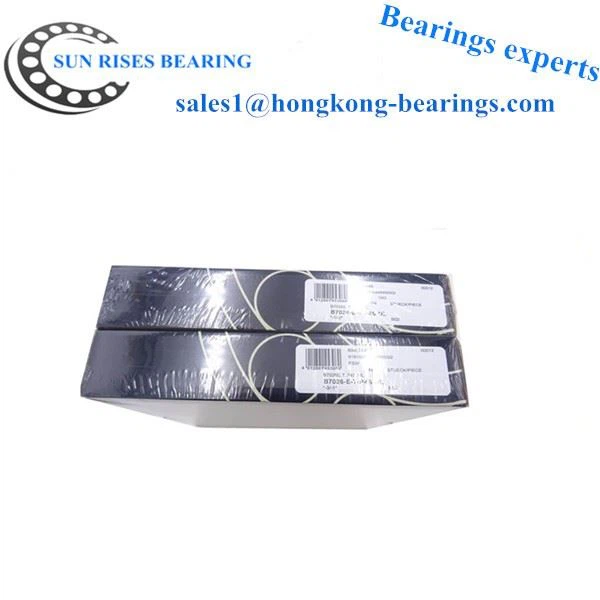

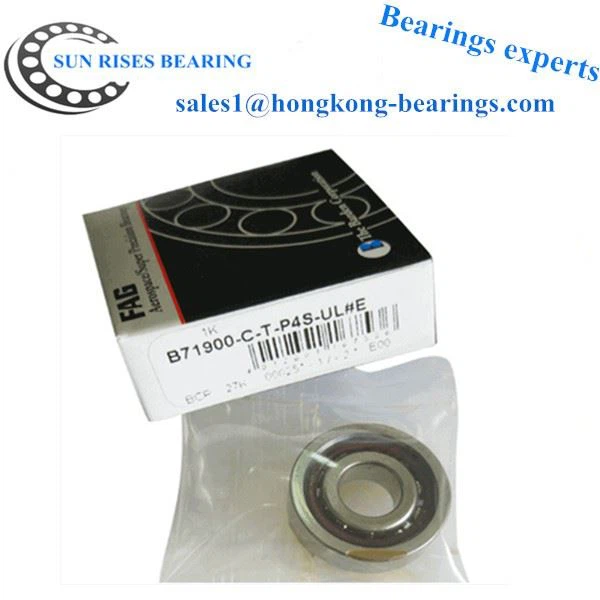

Spindle bearings HS7022-C-T-P4S Products Show:
Spindle bearings HS7022-C-T-P4S reference models:
| Model Number | d | D | B |
| mm | mm | mm | |
| HS7000-C-T-P4S | 10 | 26 | 8 |
| HS7001-C-T-P4S | 12 | 28 | 8 |
| HS7002-C-T-P4S | 15 | 32 | 9 |
| HS7003-C-T-P4S | 17 | 35 | 10 |
| HS7004-C-T-P4S | 20 | 42 | 12 |
| HS7005-C-T-P4S | 25 | 47 | 12 |
| HS7006-C-T-P4S | 30 | 55 | 13 |
| HS7007-C-T-P4S | 35 | 62 | 14 |
| HS7008-C-T-P4S | 40 | 68 | 15 |
| HS7009-C-T-P4S | 45 | 75 | 16 |
| HS7010-C-T-P4S | 50 | 80 | 16 |
| HS7011-C-T-P4S | 55 | 90 | 18 |
| HS7012-C-T-P4S | 60 | 95 | 18 |
| HS7013-C-T-P4S | 65 | 100 | 18 |
| HS7014-C-T-P4S | 70 | 110 | 20 |
| HS7015-C-T-P4S | 75 | 115 | 20 |
| HS7016-C-T-P4S | 80 | 125 | 22 |
| HS7017-C-T-P4S | 85 | 130 | 22 |
| HS7018-C-T-P4S | 90 | 140 | 24 |
| HS7019-C-T-P4S | 95 | 145 | 24 |
| HS7020-C-T-P4S | 100 | 150 | 24 |
| HS7021-C-T-P4S | 105 | 160 | 26 |
| HS7022-C-T-P4S | 110 | 170 | 28 |
| HS7024-C-T-P4S | 120 | 180 | 28 |
| HS7026-C-T-P4S | 130 | 200 | 33 |
