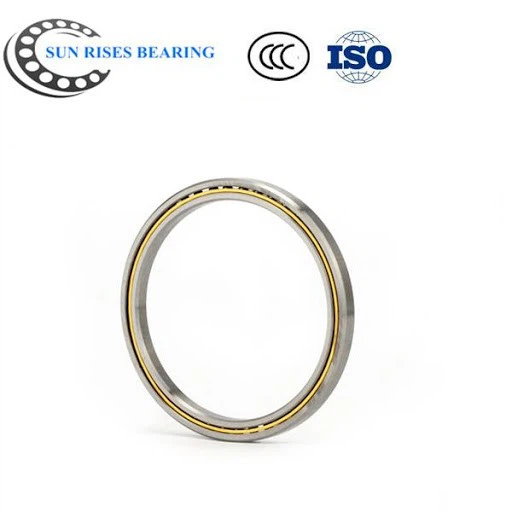

KA020AR0 Bearing drawing and technical data:
| Dimensions in inches | Capacities (lbs) | Approx. | |||||||||
| part | Bore | Outside | Land | Land | C'Bore | Dynamic | Static | weight | |||
| number | dia. | dia. | dia. | dia. | (lbs) | ||||||
| L1 | L2 | L3 | Kaydon | ISO | Thrust | Radial | Thrust | ||||
| radial | radial | ||||||||||
| KA020AR0 | 2 | 2.5 | 2.186 | 2.314 | 2.369 | 405 | 1,065 | 960 | 790 | 2,280 | 0.1 |
| KA025AR0 | 2.5 | 3 | 2.686 | 2.814 | 2.869 | 459 | 1,150 | 1,100 | 960 | 2,780 | 0.12 |
| KA030AR0 | 3 | 3.5 | 3.186 | 3.314 | 3.367 | 507 | 1,225 | 1,230 | 1,140 | 3,290 | 0.14 |
| KA035AR0 | 3.5 | 4 | 3.686 | 3.814 | 3.867 | 552 | 1,292 | 1,350 | 1,310 | 3,790 | 0.17 |
| KA040AR0 | 4 | 4.5 | 4.186 | 4.314 | 4.367 | 595 | 1,353 | 1,470 | 1,490 | 4,300 | 0.19 |
| KA042AR0 | 4.25 | 4.75 | 4.436 | 4.564 | 4.615 | 616 | 1,382 | 1,530 | 1,580 | 4,550 | 0.2 |
| KA045AR0 | 4.5 | 5 | 4.686 | 4.814 | 4.865 | 637 | 1,410 | 1,580 | 1,660 | 4,810 | 0.21 |
| KA047AR0 | 4.75 | 5.25 | 4.936 | 5.064 | 5.115 | 657 | 1,437 | 1,640 | 1,750 | 5,060 | 0.22 |
| KA050AR0 | 5 | 5.5 | 5.186 | 5.314 | 5.365 | 676 | 1,463 | 1,690 | 1,840 | 5,310 | 0.23 |
| KA055AR0 | 5.5 | 6 | 5.686 | 5.814 | 5.863 | 715 | 1,513 | 1,800 | 2,020 | 5,820 | 0.25 |
| KA060AR0 | 6 | 6.5 | 6.186 | 6.314 | 6.363 | 752 | 1,561 | 1,900 | 2,190 | 6,320 | 0.28 |
| KA065AR0 | 6.5 | 7 | 6.686 | 6.814 | 6.861 | 788 | 1,605 | 2,000 | 2,370 | 6,830 | 0.3 |
| KA070AR0 | 7 | 7.5 | 7.186 | 7.314 | 7.361 | 823 | 1,648 | 2,100 | 2,540 | 7,340 | 0.32 |
| KA075AR0 | 7.5 | 8 | 7.686 | 7.814 | 7.861 | 857 | 1,689 | 2,190 | 2,720 | 7,840 | 0.34 |
| KA080AR0 | 8 | 8.5 | 8.186 | 8.314 | 8.359 | 890 | 1,728 | 2,280 | 2,890 | 8,350 | 0.36 |
| KA090AR0 | 9 | 9.5 | 9.186 | 9.314 | 9.357 | 954 | 1,802 | 2,470 | 3,240 | 9,360 | 0.41 |
| KA100AR0 | 10 | 10.5 | 10.186 | 10.314 | 10.355 | 1,014 | 1,871 | 2,640 | 3,590 | 10,370 | 0.45 |
| KA110AR0 | 11 | 11.5 | 11.186 | 11.314 | 11.353 | 1,072 | 1,936 | 2,810 | 3,940 | 11,380 | 0.5 |
| KA120AR0 | 12 | 12.5 | 12.186 | 12.314 | 12.349 | 1,128 | 1,998 | 2,970 | 4,290 | 12,390 | 0.54 |
KA020AR0 Bearing are widely used:
