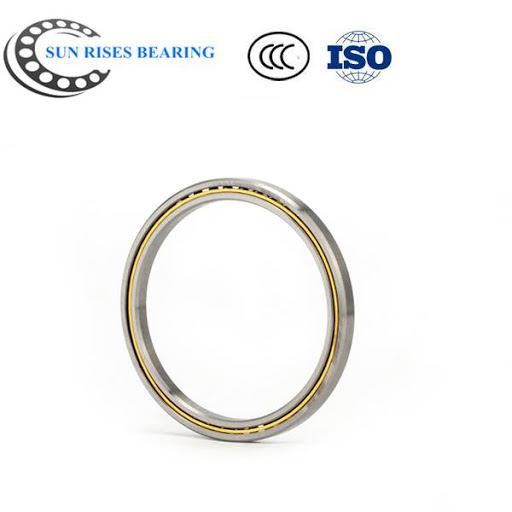

KAA17AG0 Bearing drawing and technical data:
| Dimensions in inches | Capacities (lbs) | |||||
| part | Bore | Outside | Land | Land | C'Bore | |
| number | dia. | dia. | dia. | dia. | weight | |
| L1 | L2 | L3 | (lbs) | |||
| KAA10AG0 | 1 | 1.375 | 1.14 | 1.235 | 1.274 | 0.025 |
| KAA15AG0 | 1.5 | 1.875 | 1.64 | 1.735 | 1.774 | 0.038 |
| KAA17AG0 | 1.75 | 2.125 | 1.89 | 1.985 | 2.024 | 0.045 |
KAA17AG0 Bearing are widely used:
Type A – Angular contact
A deep groove bearing with reduced shoulder on one side of inner or outer race ball path. Snap-over assembly permits use of a one-piece circular pocket ring separator and greater ball complement. These bearings will accept radial load and single direction thrust load and are normally used in conjunction with another bearing of similar construction. Type A bearings require the application of thrust to establish contact angle. Stock bearings are individual units and when purchased as such must be adjusted at installation to desired running clearance or preload. If preferred, matched sets are available.
Kaydon also offers matched spacers for applications requiring extra precision. Kaydon can provide this service direct from the factory.
