Bearing 81276 M cylindrical roller thrust bearings are designed to accommodate heavy axial loads and impact loads. They must not be subjected to any radial load. The bearings are very stiff and require little axial space.

Bearing Features

• Separable design

Shaft washer, housing washer, cylindrical roller and cage thrust assembly can be mounted separately.

• Extended bearing service life

To prevent stress peaks, the roller ends are relieved slightly to modify the line contact between the raceway and rollers.

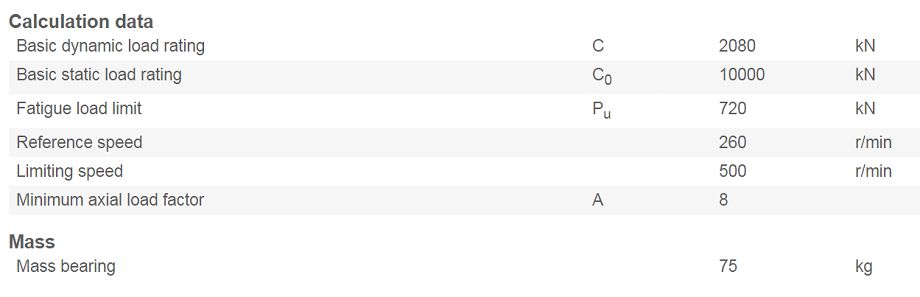

Drawing And Technical Data

Other Cylindrical Roller Thrust Bearing Models

Boundary Dimensions				Bearing Number	Basic Load Ratings		Speed Ratings		Mass	Abutment Dimensions
(mm)				Bearing Number	(N)		(rpm)		(kg)	(mm)
d	D	H	r, r1		C	C0	Reference Speed	Limiting Speed		d1	D1
d	D	H	(min.)		(dynamic)	(static)	Reference Speed	Limiting Speed		d1	D1
15	28	9	0.3	81102	11.2	27	4300	8500	0.02	28	16
17	30	9	0.3	81103	11.6	29	4300	8500	0.03	30	18
20	35	10	0.3	81104	17.6	44	3800	7500	0.04	35	21
25	42	11	0.6	81105	24	65.5	3200	6300	0.05	42	26
30	47	11	0.6	81106	24.5	69.5	3000	6000	0.06	47	32
30	52	16	0.6	81206	50	134	2400	4800	0.12	52	32
35	52	12	0.6	81107	27	83	2800	5600	0.07	52	37
35	62	18	1	81207	62	190	2000	4000	0.2	62	37
40	60	13	0.6	81108	38	118	2400	5000	0.11	60	42
40	68	19	1	81208	83	255	1900	3800	0.25	68	42
45	65	14	0.6	81109	40.5	132	2200	4500	0.13	65	47
45	73	20	1	81209	86.5	270	1800	3600	0.3	73	47
50	70	14	0.6	81110	42.5	146	2200	4300	0.14	70	52
50	78	22	1	81210	91.5	300	1700	3400	0.36	78	52
55	78	16	0.6	81111	69.5	285	1900	3800	0.22	78	57
55	90	25	1	81211	116	365	1400	2800	0.57	90	57
60	85	17	1	81112	80	300	1800	3600	0.27	85	62
60	95	26	1	81212	137	465	1400	2800	0.64	95	62
65	90	18	1	81113	83	320	1700	3400	0.31	90	67
65	100	27	1	81213	140	490	1300	2600	0.72	100	67
70	95	18	1	81114	86.5	345	1600	3200	0.33	95	72
70	105	27	1	81214	146	530	1300	2600	0.77	105	72
75	100	19	1	81115	75	290	1600	3200	0.38	100	77
75	110	27	1	81215	125	440	1200	2400	0.81	110	77
80	105	19	1	81116	76.5	300	1500	3000	0.4	105	82
80	115	28	1	81216	160	610	1200	2400	0.9	115	82
85	110	19	1	81117	76.5	310	1500	3000	0.42	110	87
85	125	31	1	81217	153	550	1100	2200	1.3	125	88
90	120	22	1	81118	104	415	1300	2600	0.64	120	92
90	135	35	1.1	81218	232	865	1000	2000	1.75	135	93
100	135	25	1	81120	146	585	1200	2400	1	135	102
100	150	38	1.1	81220	224	830	900	1800	2.2	150	103
110	145	25	1	81122	153	630	1100	2200	1.1	145	112
110	160	38	1.1	81222	240	915	850	1700	2.45	160	113
120	155	25	1	81124	160	680	1100	2200	1.15	155	122
120	170	39	1.1	81224	245	965	800	1600	2.7	170	123
130	170	30	1	81126	183	780	950	1900	1.7	170	132
130	190	45	1.5	81226	335	1250	700	1400	4.2	187	133
140	180	31	1	81128	193	850	900	1800	1.95	178	142
140	200	46	1.5	81228	360	1400	700	1400	4.55	197	143
150	190	31	1	81130	200	900	850	1700	2.05	188	152
150	215	50	1.5	81230	465	1900	630	1300	5.9	212	153
160	200	31	1	81132	204	965	850	1700	2.2	198	162
160	225	51	1.5	81232	480	2000	600	1200	6.2	222	163
