Drawing And Technical Data

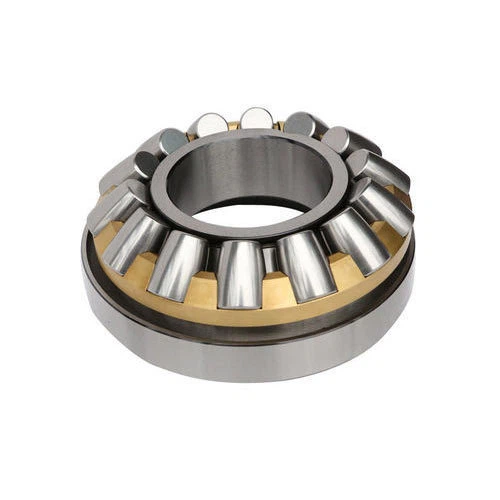

Axial spherical roller bearings 29432 E
Bearing number: 29432 E
Size (mm): 160x320x95
Brand: SWEDEN BRAND
Bore Diameter (mm): 160
Outer Diameter (mm): 320
Width (mm): 95
Bearing dimensions and specification in SKF catalogue
d - 160 mm
D - 320 mm
H - 95 mm
d1 - - 279 mm
D1 - - 224 mm
B - 60.5 mm
B1 - 84.3 mm
C - 45.5 mm
s - 99 mm
r1,2 - min. - 5 mm
da - min. - 235 mm
db1 - max. - 175 mm
db2 - max. - 189 mm
Da - max. - 270 mm
ra - max. - 4 mm
Basic dynamic load rating - C - 2080 kN
Basic static load rating - C0 - 5600 kN
Fatigue load limit - Pu - 570 kN
Reference speed - 1100 r/min
Limiting speed - 2000 r/min
Factor min. axial load - A - 3
Mass bearing - 32 kg
Tags: 160x320x95
Keywords: 29432E bearing, 29432E spherical roller thrust bearing
29432E bearing is Spherical roller thrust bearing and commonly type and widely used in many application, it contains inner ring, outer ring,and steel & brass bearing,spherical roller thrust bearing can carry radial and axial loads in both directions, 29432E spherical roller thrust bearings are particularly versatile and are simple in design, separable, suitable for high and middle high capacity, low cost maintenance.
Sun Rises Group is the 29432E China bearing manufacturer & factory & exporter & supplier, it can supply 29432E bearing, we have large quantity 29432E bearing Stock can meet your need with lowest price and fast delivery.
Delivery/ Shipping/ Payment Method
Delivery: 3-5working days after your payment.
Shipping: DHL/ TNT/By air/ Sea, as your request.
Payment Method: T/T WEST UNION/ PAYPAL/LC etc.
