What Is A Tapered Roller Bearing, And What Are The Characteristics Of A Tapered Roller Bearing?

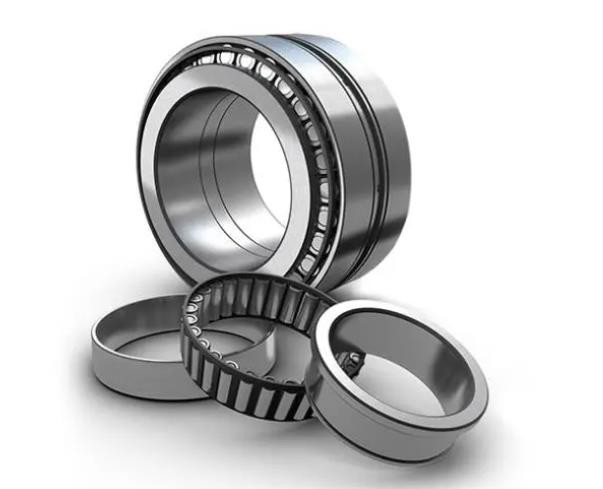

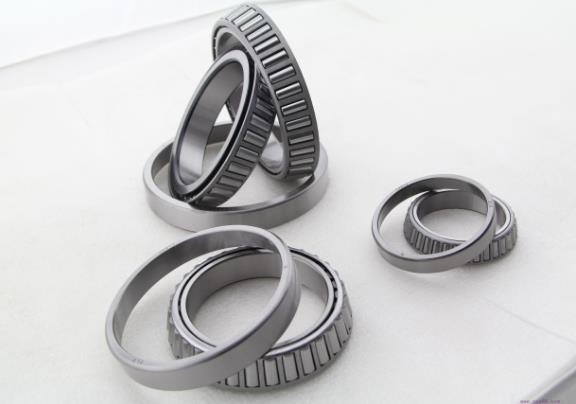

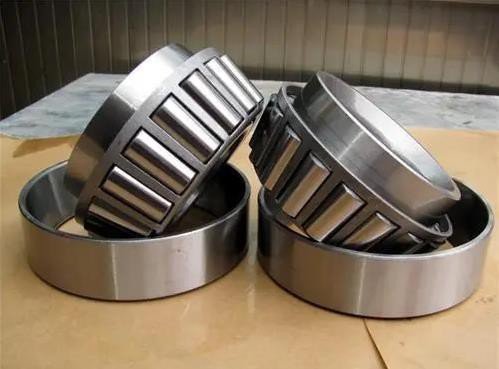

A tapered roller bearing is a key mechanical component designed for heavy-duty applications. It consists of a cone (inner ring), an outer ring (outer ring), rollers and a cage. The rollers are in the shape of a truncated cone, and the inner and outer rings are The ring raceways are all tapered to adapt to the shape of the rollers.

The projections of the raceways and roller apexes of tapered roller bearings all intersect at a common point on the bearing spindle. This conical geometry provides true coaxial rotation and prevents slippage between the raceways and rollers. This reduces component wear and fatigue.

Tapered roller bearings can carry both radial and axial loads, while other types of bearings carry primarily one type of load. Whether the load on the bearing is radial, axial, or a combination of the two, the tapered design creates a resultant force. The flange or rib pushes the rollers up the cone. This force holds the rollers against the flange and keeps the rollers aligned. Engineers often use opposing pairs of tapered roller bearings in combination. Supports axial forces evenly in both directions.

Another advantage of tapered roller bearings is that the clearance is adjustable. Since the outer and inner ring assemblies are separable, it allows end play (axial clearance) to be created by axially moving the outer or inner ring during installation. Or preload (axial interference). In many applications, a slight preload will maximize bearing performance and service life. However, it should be noted that excessive preload will greatly shorten bearing life or produce high temperatures. , which quickly leads to bearing failure.

Compared with ball bearings of the same size, the third advantage of tapered roller bearings is that they can support a higher load-bearing capacity. The line contact between the rollers and the raceway provides a wider load-bearing surface than the point contact of the balls. Therefore, for the same load-carrying capacity, tapered roller bearings will be smaller in size than ball bearings.

Although tapered roller bearings have many advantages, they also have some disadvantages. Tapered roller bearings have speed limitations and are very sensitive to misalignment, so engineers should consider using other types of bearings for applications with high misalignment or high rotational speed requirements. application. Tapered roller bearings are commonly used in medium-speed, heavy-duty applications with multi-directional loads, such as gearboxes, differentials, wheel hubs and railway axles, as well as agricultural, construction, and mining equipment.

Below Is Our Four Row Tapered Roller Stocklist For Your Check.

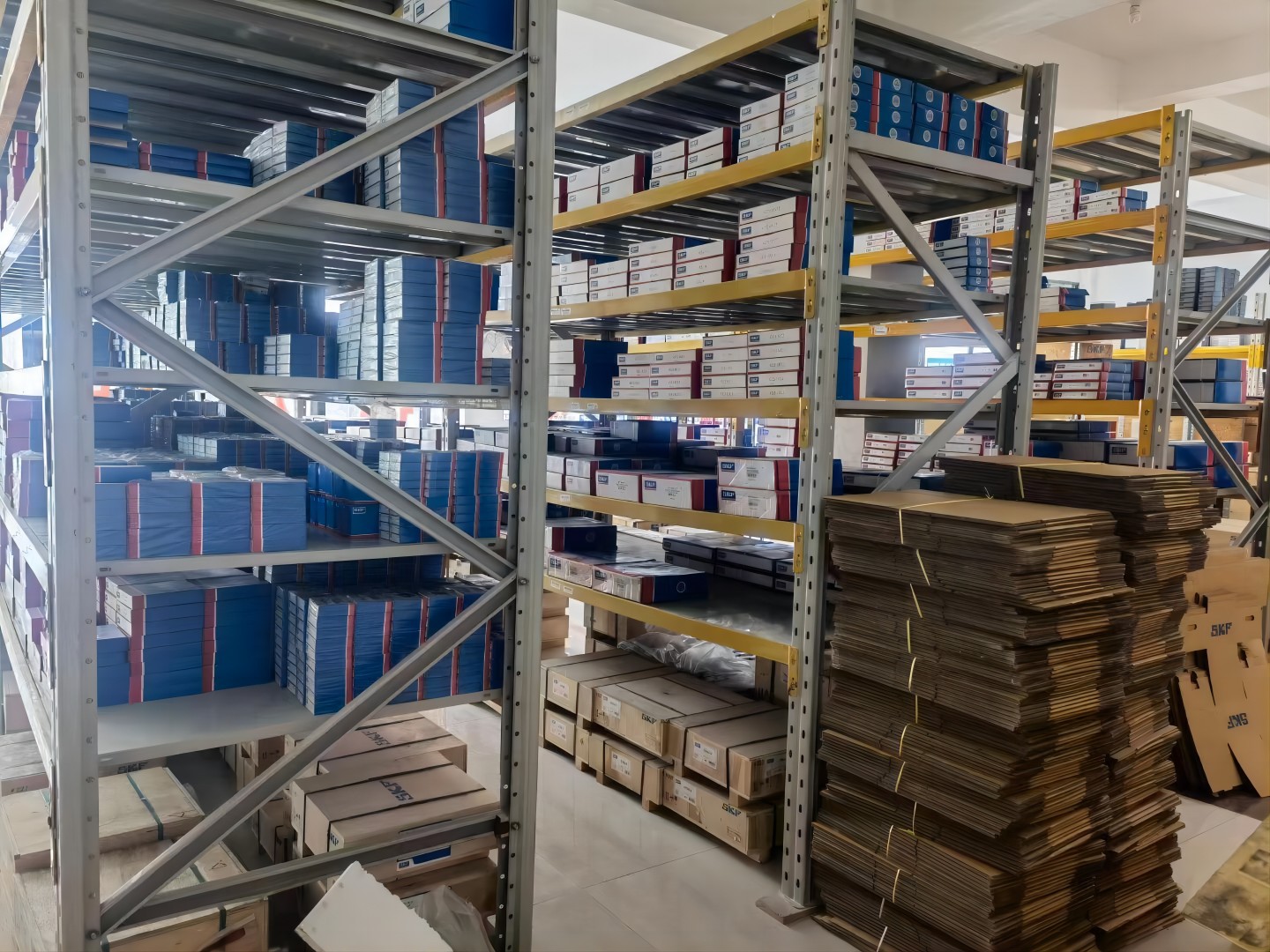

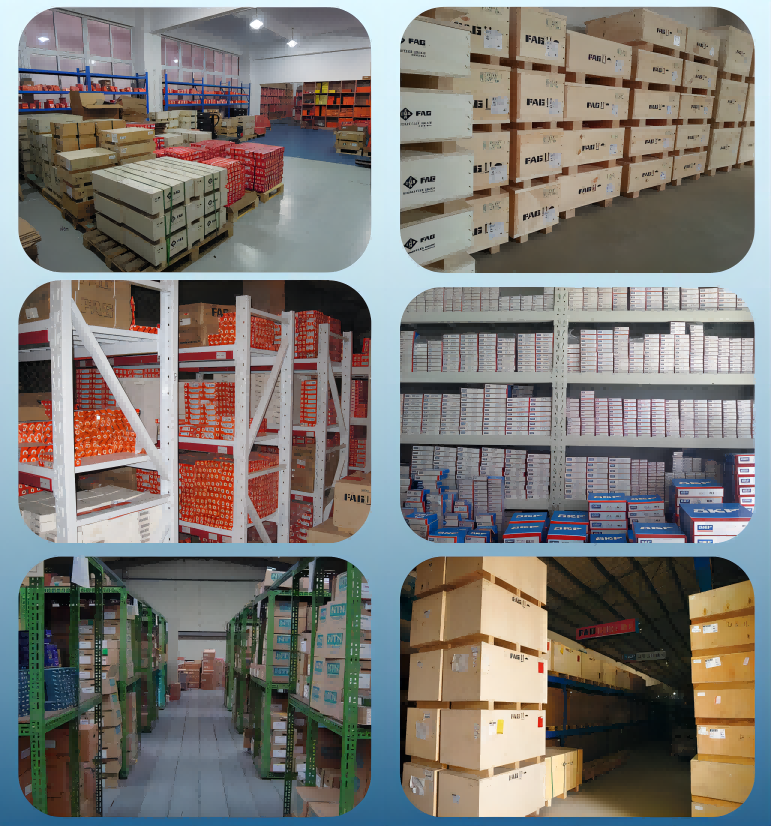

Our Stock
