Specifications:

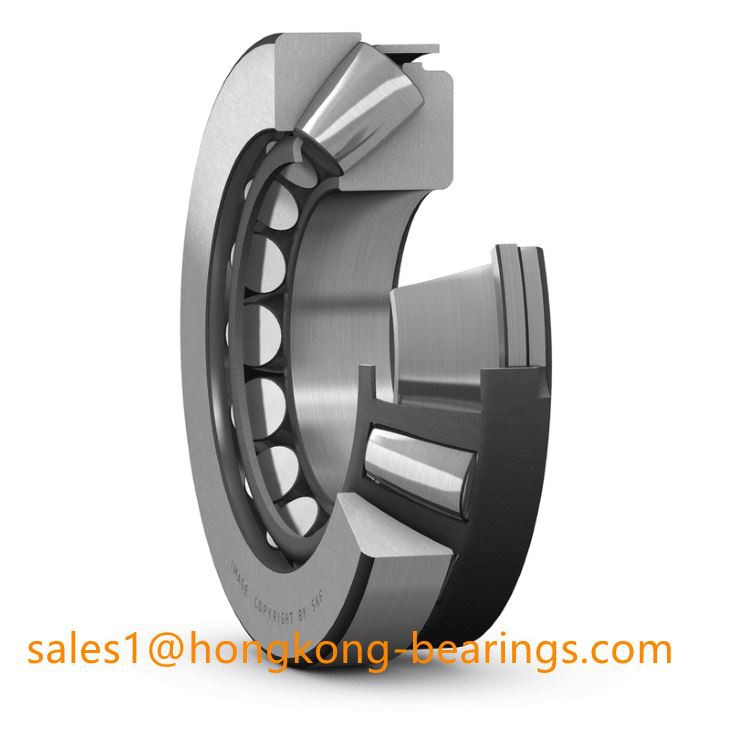

| Designation | 29422 E |
| Bore Diameter | 110 mm |
| Outside Diameter | 230 mm |
| Overall Width | 73 mm |
| Weight | 29.69 lbs/13.5kg |
| Series | 294 |
| Cage Material | Steel |
| Static Load Capacity | 3000 kN |
| Dynamic Load Capacity | 1180 kN |
| Maximum RPM | 2800 RPM |
| Operating Temperature Range | Maximum of +392 °F |
| Separable Type | Non-Separable |
| Fillet Radius | 2.5 mm |
Features and benefits:
High load carrying capacity
Accommodate misalignment
Separable design
High speed capability
Long service life
Low friction
Extended SKF 294 bearing series:

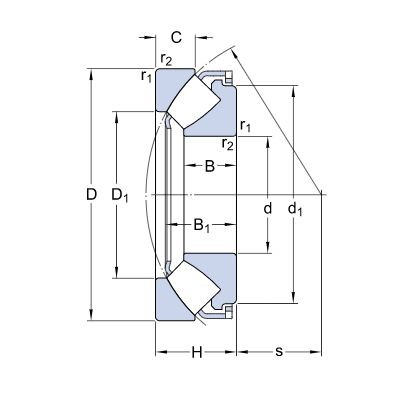

| Designation | Principal dimensions | Basic load ratings | Fatigue load limit | Speed ratings | ||||
| dynamic | static | Reference speed | Limiting speed | |||||
d[mm] | D[mm] | H[mm] | C[kN] | C0[kN] | Pu[kN] | [r/min] | [r/min] | |
| 29412 E | 60 | 130 | 42 | 390 | 915 | 114 | 2 800 | 5 000 |
| 29413 E | 65 | 140 | 45 | 455 | 1 080 | 137 | 2 600 | 4 800 |
| 29414 E | 70 | 150 | 48 | 520 | 1 250 | 153 | 2 400 | 4 300 |
| 29415 E | 75 | 160 | 51 | 600 | 1 430 | 173 | 2 400 | 4 000 |
| 29416 E | 80 | 170 | 54 | 670 | 1 630 | 193 | 2 200 | 3 800 |
| 29417 E | 85 | 180 | 58 | 735 | 1 800 | 212 | 2 000 | 3 600 |
| 29418 E | 90 | 190 | 60 | 815 | 2 000 | 232 | 1 900 | 3 400 |
| 29420 E | 100 | 210 | 67 | 980 | 2 500 | 275 | 1 700 | 3 000 |
| 29422 E | 110 | 230 | 73 | 1 180 | 3 000 | 325 | 1 600 | 2 800 |
| 29424 E | 120 | 250 | 78 | 1 370 | 3 450 | 375 | 1 500 | 2 600 |
| 29426 E | 130 | 270 | 85 | 1 560 | 4 050 | 430 | 1 300 | 2 400 |
| 29428 E | 140 | 280 | 85 | 1 630 | 4 300 | 455 | 1 300 | 2 400 |
| 29430 E | 150 | 300 | 90 | 1 860 | 5 100 | 520 | 1 200 | 2 200 |
| 29432 E | 160 | 320 | 95 | 2 080 | 5 600 | 570 | 1 100 | 2 000 |
| 29434 E | 170 | 340 | 103 | 2 360 | 6 550 | 640 | 1 100 | 1 900 |
| 29436 E | 180 | 360 | 109 | 2 600 | 7 350 | 710 | 1 000 | 1 800 |
| 29438 E | 190 | 380 | 115 | 2 850 | 8 000 | 765 | 950 | 1 700 |
| 29440 E | 200 | 400 | 122 | 3 200 | 9 000 | 850 | 850 | 1 600 |
| 29444 E | 220 | 420 | 122 | 3 350 | 9 650 | 900 | 850 | 1 500 |
| 29448 E | 240 | 440 | 122 | 3 400 | 10 200 | 930 | 850 | 1 500 |
| 29452 E | 260 | 480 | 132 | 4 050 | 12 900 | 1 080 | 750 | 1 300 |
| 29456 E | 280 | 520 | 145 | 4 900 | 15 300 | 1 320 | 670 | 1 200 |
| 29460 E | 300 | 540 | 145 | 5 000 | 16 600 | 1 340 | 670 | 1 200 |
