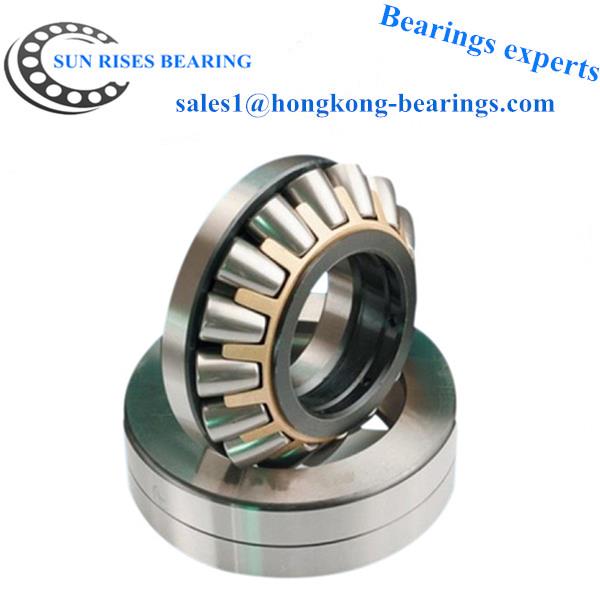

This 29418E bearing is a Single Row Spherical Roller Thrust Bearing, with an optimized internal design. The bearing's dimensions are 90x190x60.
29418E Bearing Features
• Accommodate misalignment
Spherical roller bearings are self-aligning like self-aligning ball bearings or CARB bearings .
• High load carrying capacity
Spherical roller bearings are designed to accommodate both heavy radial loads and axial loads in both directions.
• Long service life
The rollers are manufactured to such tight dimensional and geometrical tolerances that they are practically identical in a roller set. The symmetrical rollers self-adjust, providing optimal load distribution along the roller length and together with the special profile prevent stress peaks at the roller ends .
• Low friction
Self-guiding rollers keep friction and frictional heat at low levels . A floating guide ring guides unloaded rollers so that they enter the load zone in the optimal position.
• Robust
All spherical roller bearings contain strong window- or prong-type cages.
Drawing And Technical Data
29418E Bearings Spherical roller thrust bearings are extremely well suited for heavy-duty applications, with axial loads or combined axial and radial loads. They are self-aligning and can accommodate low as well as high speeds. Due to their design, various degrees of stiffness can be arranged. Versatility is a characteristic of spherical roller thrust bearings as they can contribute to space saving and cost-effective designs. The following pages provide more detailed explanations about this bearing type and how it can be used.
By design, spherical roller thrust bearings are the only roller thrust bearings that can accommodate radial loads in addition to axial loads. This makes spherical roller thrust bearings an outstanding solution in applications that have to accommodate very heavy axial loads in combination with radial loads. This ability to accommodate combined loads enables economical, space saving designs that can also provide a high degree of stiffness under heavy load conditions. In addition to these unique benefits, spherical roller thrust
bearings are also the only roller thrust bearings that can accommodate misalignment and shaft deflections. Due to the contact angle in spherical roller thrust bearings, they can successfully replace tapered roller bearings in a number of applications.
The spherical roller thrust bearing accommodates misalignment between the shaft and housing. This gives smooth, friction-free adjustment under virtually all operating conditions.
The bearing is designed to accommodate very heavy axial loads in one direction or heavy combined axial and radial loads.
The mounting procedure is facilitated, as the bearing can be separated. The shaft washer with the cage and roller assembly and the housing washer can be mounted separately.
