29280 spherical roller thrust bearings have specially designed raceways and accommodate a large number of asymmetrical rollers. The rollers have an optimum conformity with the washer raceways to optimize load distribution along the roller length. Therefore, they can accommodate relatively high speeds, heavy axial loads in one direction and heavy radial loads. The load is transmitted between the raceways at an angle to the bearing axis. Spherical roller thrust bearings are self-aligning and can accommodate misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

29280 bearing drawing and technical data:

Technical Data

INSIDE DIAMETER (MM):400MM

OUTSIDE DIAMETER (MM):540MM

WIDTH (MM):85MM

WEIGHT(KGS):55.5 KGS

29280 Spherical roller thrust bearings are used in industrial applications, where there are heavy axial loads, moderate speeds and possibly misalignment. Some common application areas are: Gearboxes. Pulp and paper processing equipment (notably refiners)

Reference Spherical roller thrust bearings catalogue:

Designation	Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings
				dynamic	static		Reference speed	Limiting speed
	d	D	H	C	C0	Pu
	mm			kN		kN	r/min
29412 E	60	130	42	390	915	114	2800	5000
29413 E	65	140	45	455	1080	137	2600	4800
29414 E	70	150	48	520	1250	153	2400	4300
29415 E	75	160	51	600	1430	173	2400	4000
29416 E	80	170	54	670	1630	193	2200	3800
29417 E	85	180	58	735	1800	212	2000	3600
29317 E	85	150	39	380	1060	129	2400	4000
29318 E	90	155	39	400	1080	132	2400	4000
29418 E	90	190	60	815	2000	232	1900	3400
29420 E	100	210	67	980	2500	275	1700	3000
29320 E	100	170	42	465	1290	156	2200	3600
29322 E	110	190	48	610	1730	204	1900	3200
29422 E	110	230	73	1180	3000	325	1600	2800
29424 E	120	250	78	1370	3450	375	1500	2600
29324 E	120	210	54	765	2120	245	1700	2800
29326 E	130	225	58	865	2500	280	1600	2600
29426 E	130	270	85	1560	4050	430	1300	2400
29428 E	140	280	85	1630	4300	455	1300	2400
29328 E	140	240	60	980	2850	315	1500	2600
29330 E	150	250	60	1000	2850	315	1500	2400
29230 E	150	215	39	408	1600	180	1800	2800
29430 E	150	300	90	1860	5100	520	1200	2200
29432 E	160	320	95	2080	5600	570	1100	2000
29332 E	160	270	67	1180	3450	375	1300	2200
29334 E	170	280	67	1200	3550	365	1300	2200
29434 E	170	340	103	2360	6550	640	1100	1900
29236 E	180	250	42	495	2040	212	1600	2600
29436 E	180	360	109	2600	7350	710	1000	1800
29336 E	180	300	73	1430	4300	440	1200	2000
29338 E	190	320	78	1630	4750	490	1100	1900
29438 E	190	380	115	2850	8000	765	950	1700
29340 E	200	340	85	1860	5500	550	1000	1700
29440 E	200	400	122	3200	9000	850	850	1600
29240 E	200	280	48	656	2650	285	1400	2200
29344 E	220	360	85	2000	6300	610	1000	1700
29444 E	220	420	122	3350	9650	900	850	1500
29244 E	220	300	48	690	3000	310	1300	2200
29248	240	340	60	799	3450	335	1100	1800
29348 E	240	380	85	2040	6550	630	1000	1600
29448 E	240	440	122	3400	10200	930	850	1500
29352 E	260	420	95	2550	8300	780	850	1400
29252	260	360	60	817	3650	345	1100	1700
29452 E	260	480	132	4050	12900	1080	750	1300
29356 E	280	440	95	2550	8650	800	850	1400
29256	280	380	60	863	4000	375	1000	1700
29456 E	280	520	145	4900	15300	1320	670	1200
29360 E	300	480	109	3100	10600	930	750	1200
29260	300	420	73	1070	4800	465	900	1400
29460 E	300	540	145	5000	16600	1340	670	1200
29364 E	320	500	109	3350	11200	1000	750	1200
29264	320	440	73	1110	5100	465	850	1400
29464 E	320	580	155	5700	19000	1530	600	1100
29268	340	460	73	1130	5400	480	850	1300
29368	340	540	122	2710	11000	950	600	1100
29468 E	340	620	170	6700	22400	1760	560	1000
29272	360	500	85	1460	6800	585	750	1200
29472 EM	360	640	170	6200	21200	1630	560	950
29372	360	560	122	2760	11600	980	600	1100
29276	380	520	85	1580	7650	655	700	1100
29376	380	600	132	3340	14000	1160	530	1000
29476 EM	380	670	175	6800	24000	1860	530	900
29480 EM	400	710	185	7650	26500	1960	480	850
29380	400	620	132	3450	14600	1200	530	950
29480 E	400	710	185	7650	26500	1960	480	850
29280	400	540	85	1610	8000	695	700	1100
29384	420	650	140	3740	16000	1290	500	900
29484 EM	420	730	185	7800	27500	2080	480	850
29284	420	580	95	1990	9800	815	630	1000
29388 EM	440	680	145	5200	19300	1560	530	850
29488 EM	440	780	206	9000	32000	2320	430	750
29288	440	600	95	2070	10400	850	630	1000
29392	460	710	150	4310	19000	1500	450	800
29492 EM	460	800	206	9300	33500	2450	430	750
29292	460	620	95	2070	10600	865	600	950
29496 EM	480	850	224	9550	39000	2800	340	670
29296	480	650	103	2350	11800	950	560	900
293/500	500	750	150	4490	20400	1560	430	800
292/500	500	670	103	2390	12500	1000	560	900
294/500 EM	500	870	224	9370	40000	2850	340	670
294/530 EM	530	920	236	10500	44000	3100	320	630
292/530 EM	530	710	109	3110	15300	1220	530	850
293/530 EM	530	800	160	5870	26500	2080	400	750
294/560 EM	560	980	250	12000	51000	3550	300	560
292/560	560	750	115	2990	16000	1220	480	800
292/600 EM	600	800	122	3740	18600	1460	450	700
294/600 EM	600	1030	258	13100	56000	4000	280	530
292/630 EM	630	850	132	4770	23600	1800	400	670
293/630 EM	630	950	190	8450	38000	2900	320	600
294/630 EM	630	1090	280	14400	62000	4150	260	500
294/670 EM	670	1150	290	15400	68000	4500	240	450
293/710 EM	710	1060	212	9950	45500	3400	280	500
294/710 EF	710	1220	308	17600	76500	5000	220	430
294/750 EF	750	1280	315	18700	85000	5500	200	400
292/800 EM	800	1060	155	6560	34500	2550	320	530
293/800 EM	800	1180	230	11300	55000	3900	240	450
294/800 EF	800	1360	335	20200	93000	5850	190	360
294/850 EF	850	1440	354	23900	108000	7100	170	340
294/900 EF	900	1520	372	26700	122000	7200	160	300
294/950 EF	950	1600	390	28200	132000	7800	140	280
294/1000 EF	1000	1670	402	31100	140000	8650	130	260
294/1060 EF	1060	1770	426	33400	156000	8500	120	240

Hot Tags: 29280 bearing, suppliers, agency, price, for sale, Thrust Ball Bearing, Thrust Bearings, 29488 E1 XL MB Spherical Roller Thrust Bearing, 29456 E MB Spherical Roller Thrust Bearing

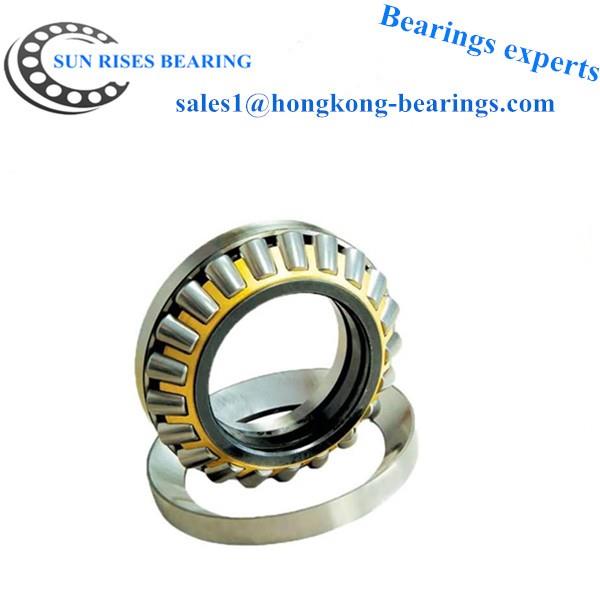

29280 Bearing
